Lockable Static Earthing Reels

Static reels are used to bond two pieces of equipment to allow static charge to be safely equalised. Static reels are typically used when product is transferred from one tank to another e.g. when pumping between a tanker and storage tank or when fueling aircraft.

Liquip offers the LSR100, which has been developed to provide users with a safe and reliable static earthing reel that when locked won’t inadvertently unwind while a vehicle is moving.

Our range of static earthing reels are used for the controlled discharge of undesirable static electricity during the transfer of flammable liquids on road tankers, terminal & depot and in pumping applications.

  • Stainless steel components are used to ensure corrosion does not break continuity.
  • Simple to use locking mechanism prevents the static reel from unwinding due to vibration/over run.
  • suitable for depot or vehicle use.
  • Reliable continuity is ensured through the use of a carbon brush on a stainless steel shaft.
  • Manual operation as spring-rewind types have caused accidents when inadvertently released.
  • Comes supplied with 30m of yellow cable for increased visibility at night.
  • Dust seals protect the assembly internals and graphite grease ensures long life and easy rotation without electrical resistance.
  • Standard wire 2mm dia. Other types readily available.
  • Optional cable guide

Resistance
Nominal reel resistance is 5 ohms.

Standards
Meets AS 2809:2 – Maximum end-to-end resistance of 10 ohms.

Materials
-Carbon brush runs in sealed section to eliminate dirt and corrosion.
-Shaft has grease reservoir for all-of-life lubrication.

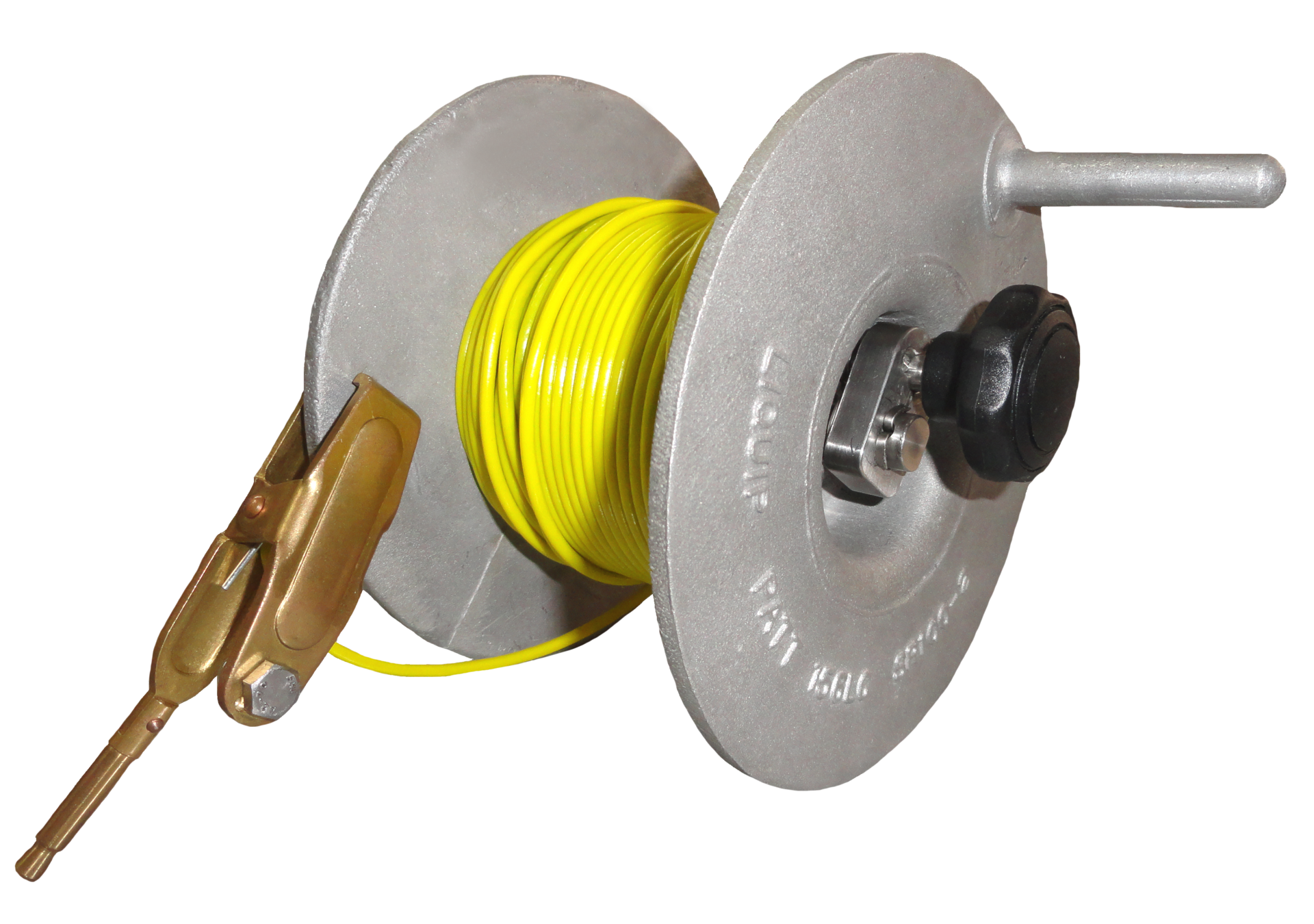

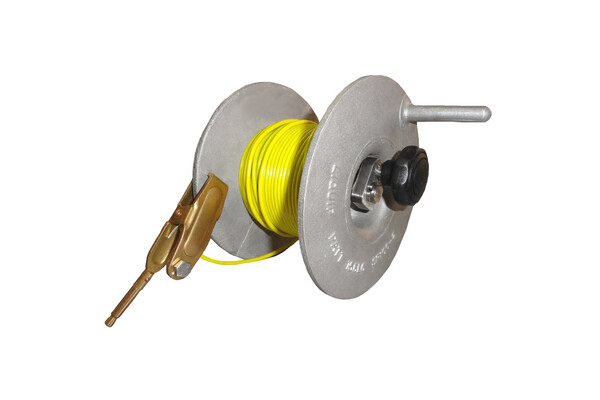

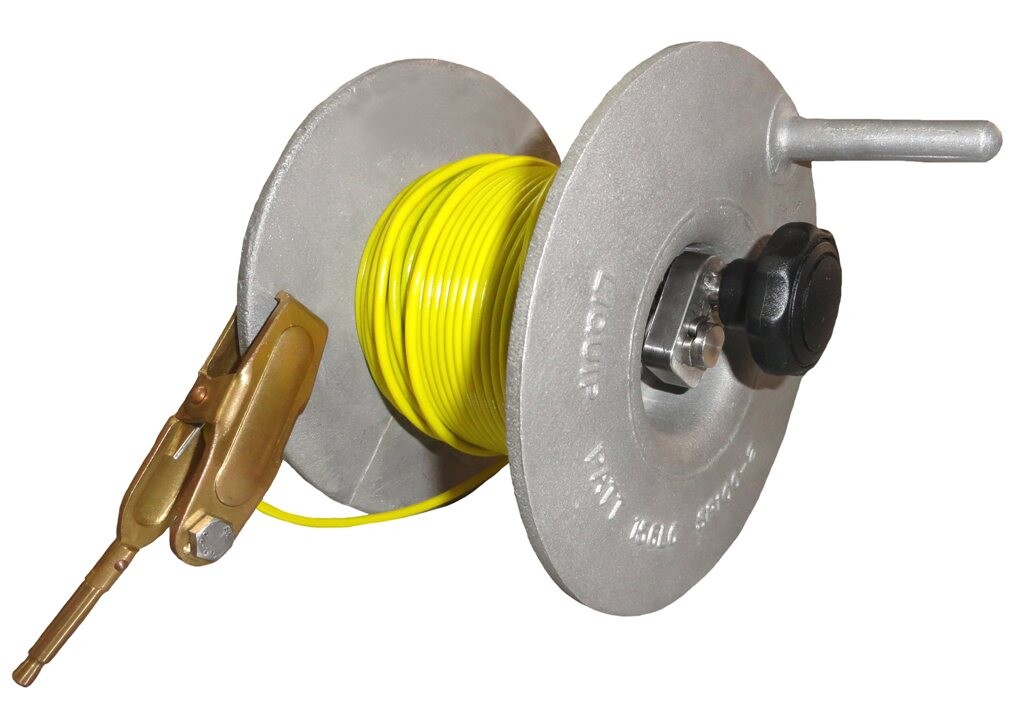

LSR100: Lockable static reel complete with 30m of yellow cable and bonding clip.

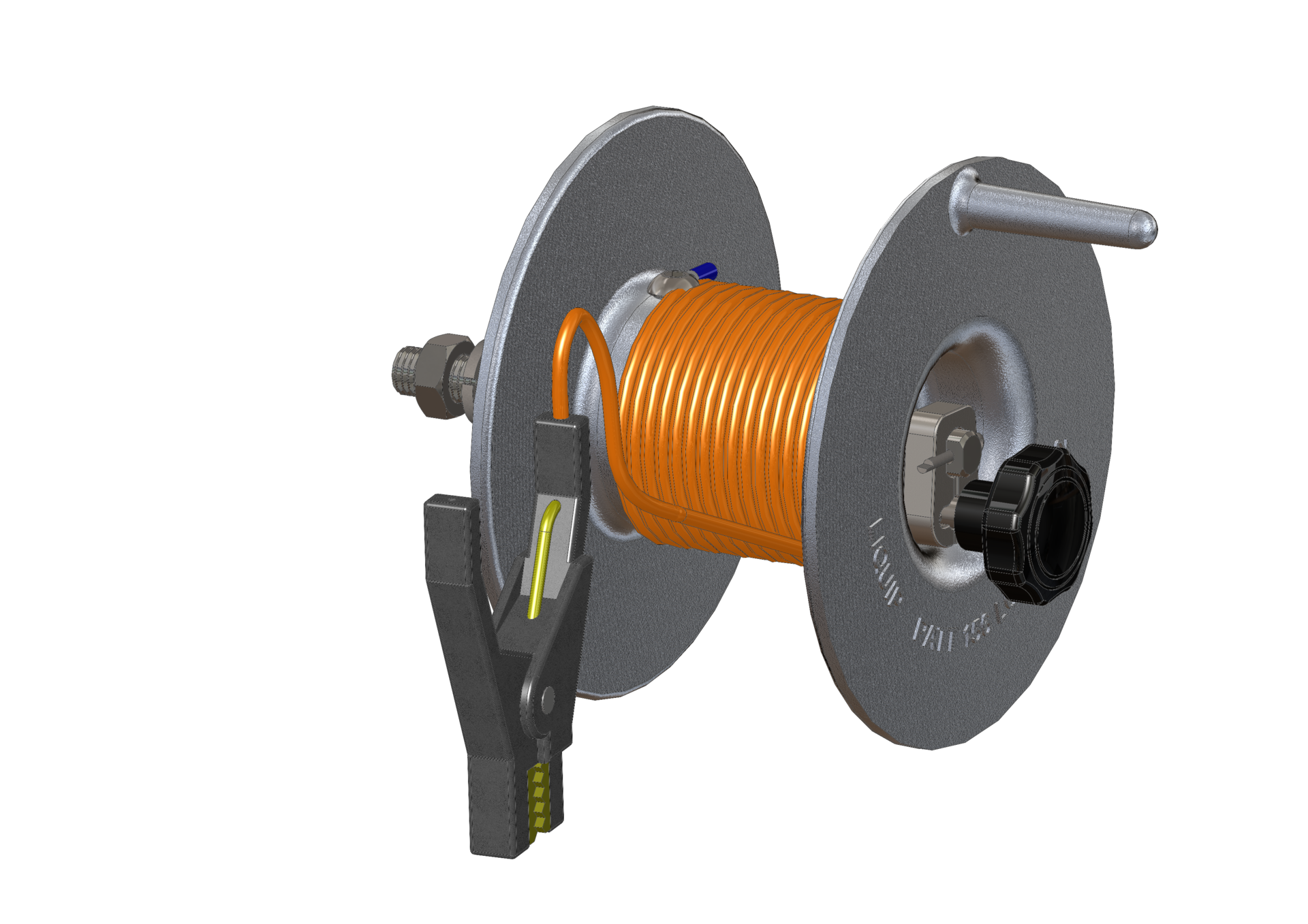

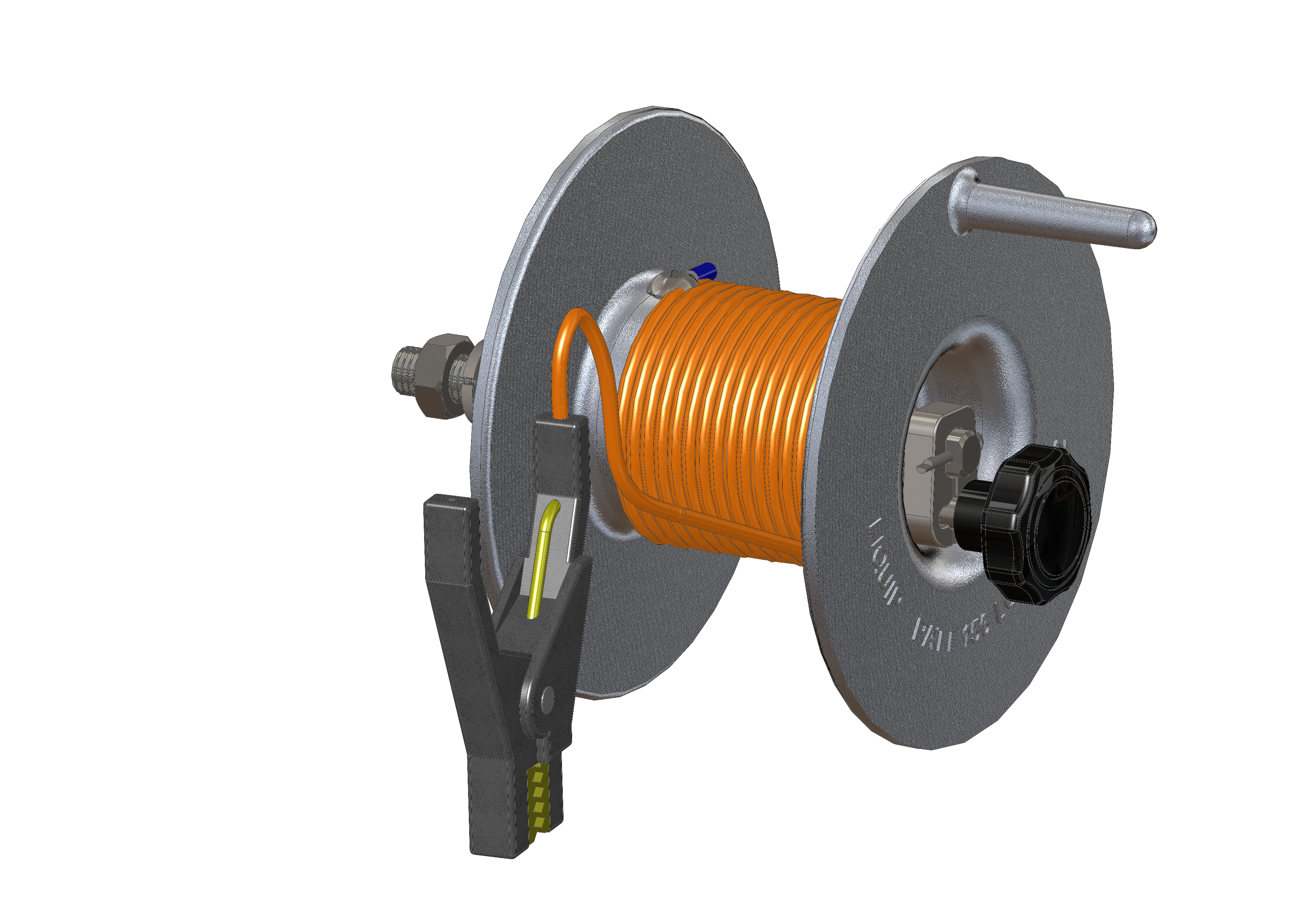

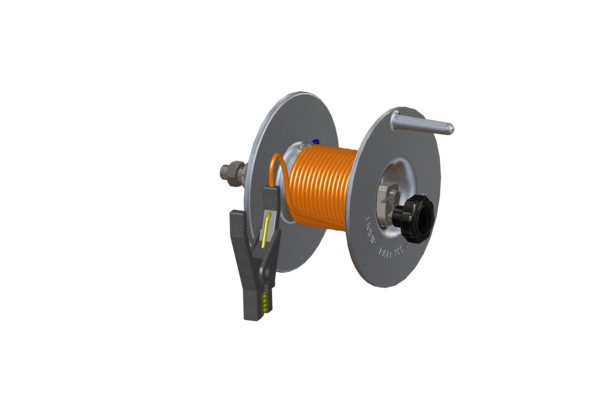

LSR101: Lockable static reel complete with 30m of orange cable and MIL Spec Aluminium static clip.

SR200-3: Optional cable guide for LSR100.

7158: Optional spacer for LSR100.
