Type F Camlock Fittings



Liquip camlocks are built to NATO specification (MIL-C-27487 (Superceded by A-A 59326) and are of aluminium construction.

For Aviation selectivity Notches and pins are used to dedicate these couplings for use with Aviation Gasoline or Aviation Turbine Fuel, thus preventing the wrong product being loaded into the wrong tank. All Aviation units conform to Australian Code of Practice CP23.

Type F Adapter - Cam and Groove Male Adapter x Male BSP Thread.

Type F adapters are normally used with Type B couplers, but can also be used with Type C and D couplers or DC (Dust Cap) of identical size.

Recommended products for replacement

    Technical Information

    Materials
    Aluminium.

    Sizes Range
    ¾" to 4".

    Thread
    Male Camlock to Male BSP Thread.


    Ordering Information

    MALE CAMLOCK TO MALE BSP THREAD

    Item Camlock     Thread
    NA20-10-15A ¾" ½"
    NA20-10A ¾" ¾"
    NA25-10A 1" 1"
    NA32-10A 1¼" 1¼"
    NA40-10A 1½" 1½"
    NA50-10A 2" 2"
    NA65-10A 2½" 2½"
    NA80-10A 3" 3"
    NA100-10A 4" 4"
    Resources
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Image Item Description
    Add Item into Enquiry Cart
    NA100-10A MALE CAMLOCK (4") TO MALE BSP THREAD (4")

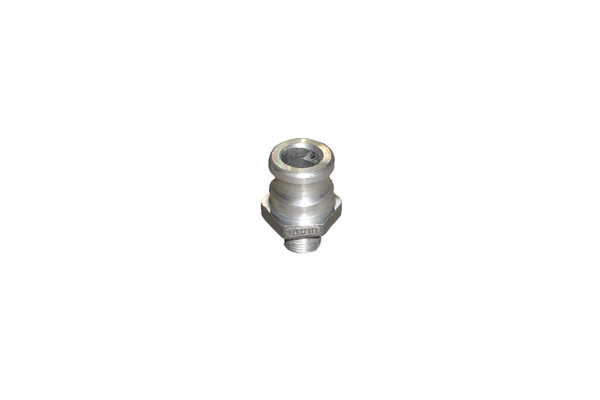

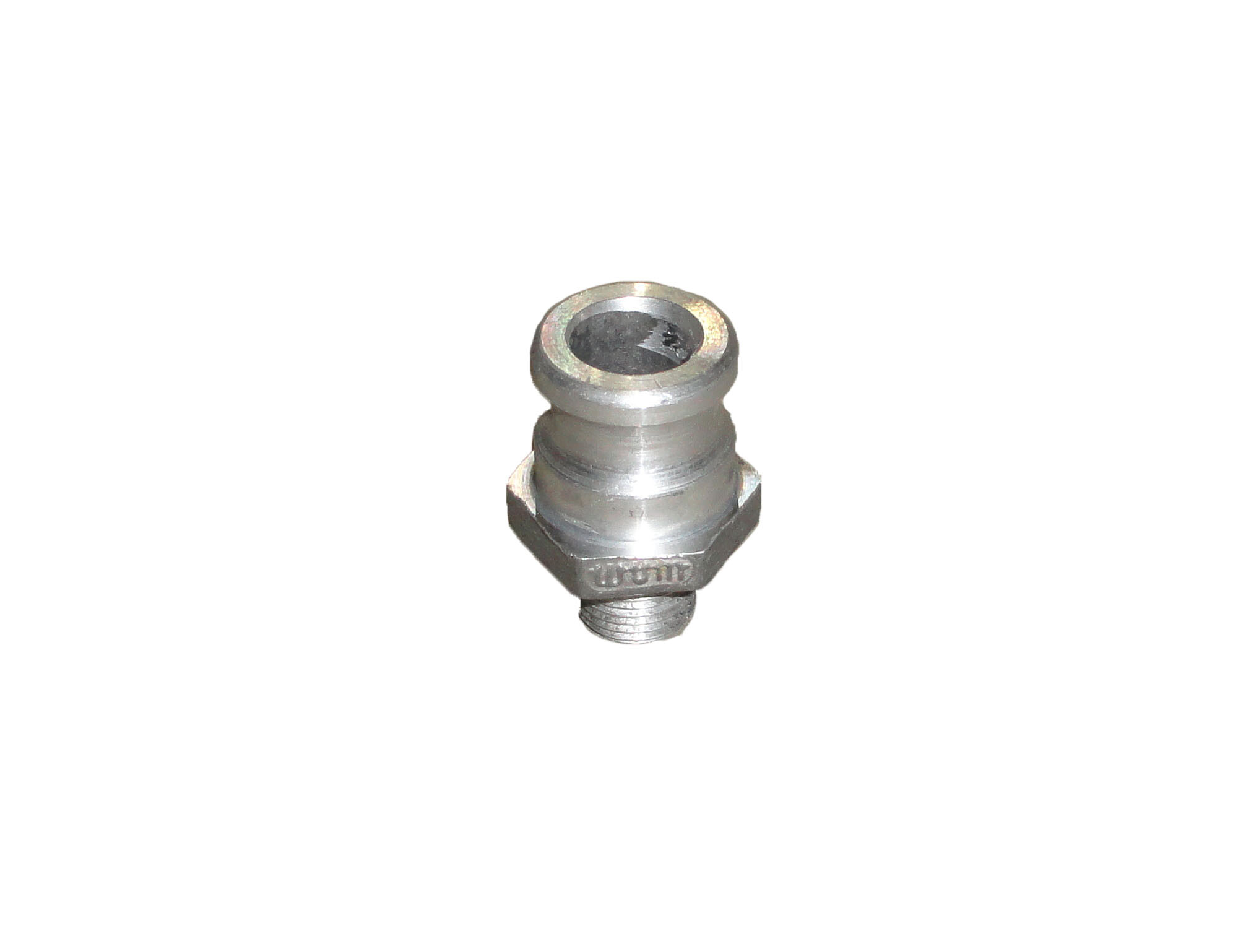

    NA20-10-15A MALE CAMLOCK (¾") TO MALE BSP THREAD (½")

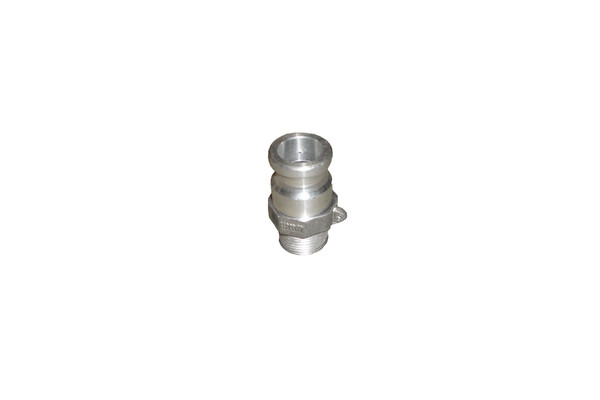

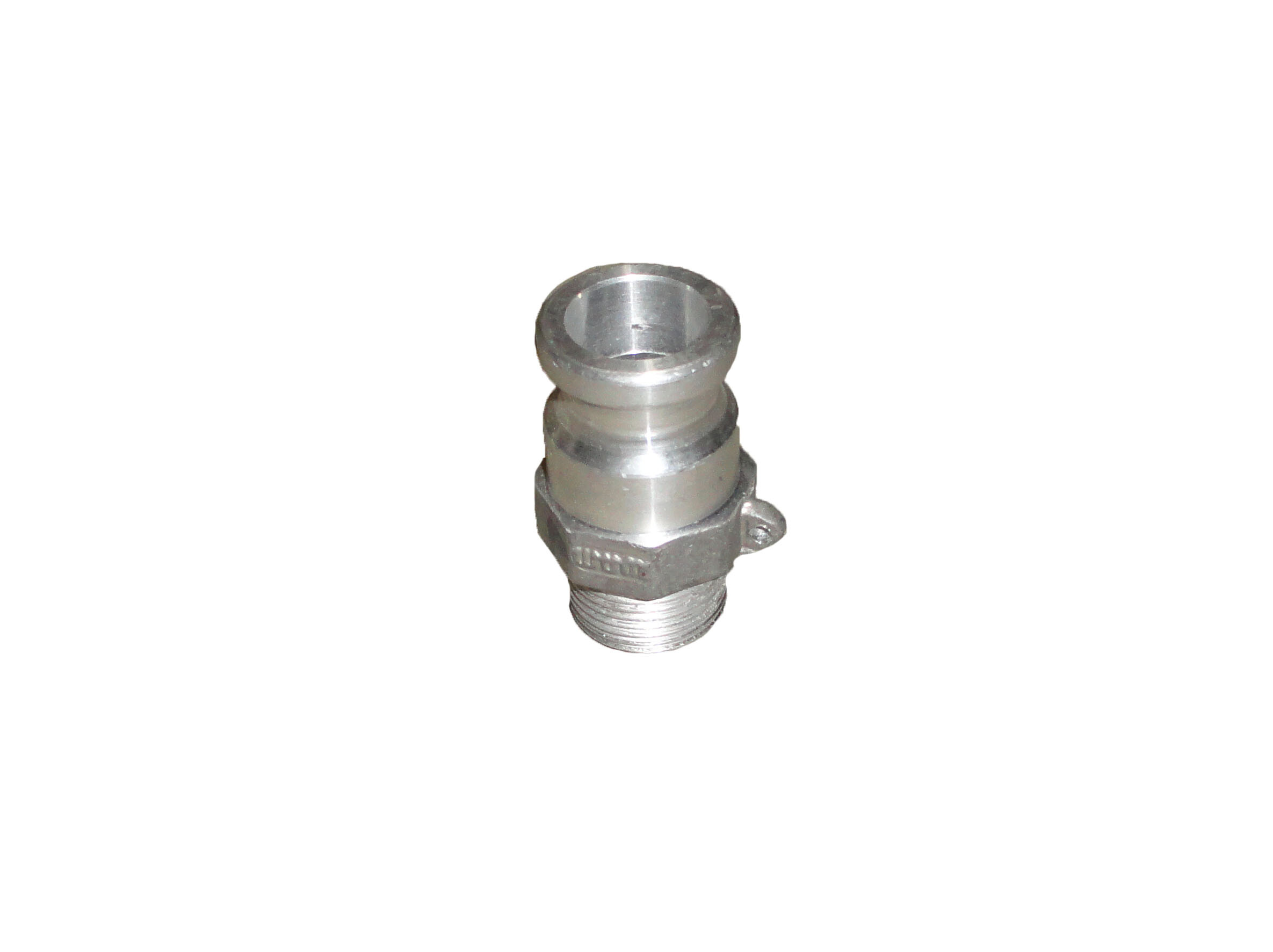

    NA20-10A MALE CAMLOCK (¾") TO MALE BSP THREAD (¾")
