Type D Camlock Fittings

Liquip camlocks are built to NATO specification (MIL-C-27487 (Superceded by A-A 59326) and are of aluminium construction.

For Aviation selectivity Notches and pins are used to dedicate these couplings for use with Aviation Gasoline or Aviation Turbine Fuel, thus preventing the wrong product being loaded into the wrong tank. All Aviation units conform to Australian Code of Practice CP23.

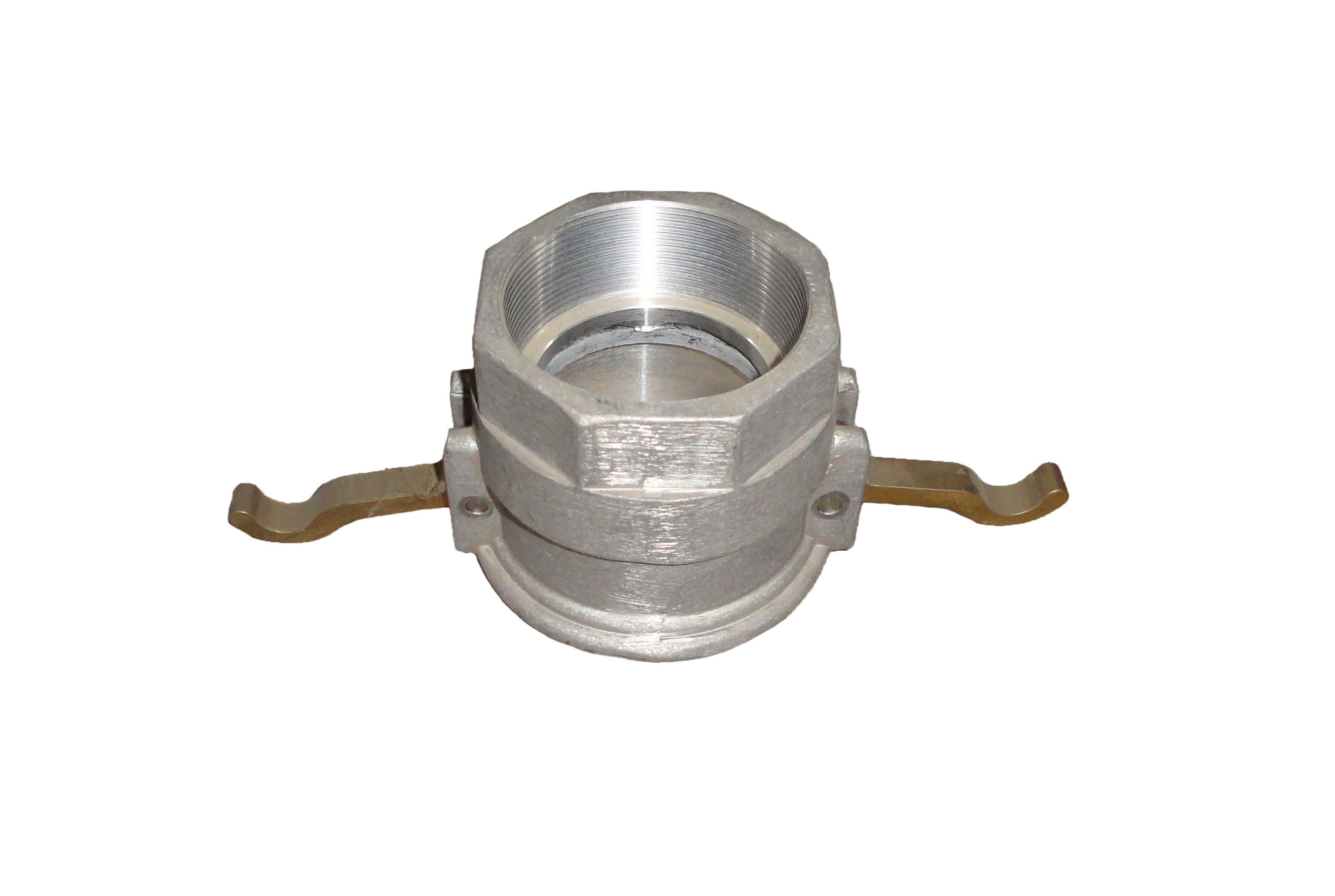

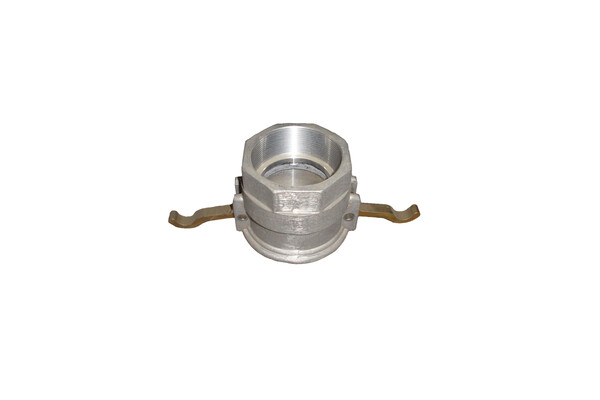

Type D Coupler - Cam and Groove Female Coupler x Female NPT Thread

Type D couplers are normally used with type A adapters but can be used with Type E and F adapters and DP (Dust Plug) of identical size.

Materials
Aluminium.

Sizes Range
1 ¼ " to 4".

Thread
BSP.

CAMLOCK FEMALE TO FBSP

Item Size
NA32-20A 1¼"
NA40-20A 1½"
NA50-20A 2"
NA80-20A 3"
NA100-20A 4"
