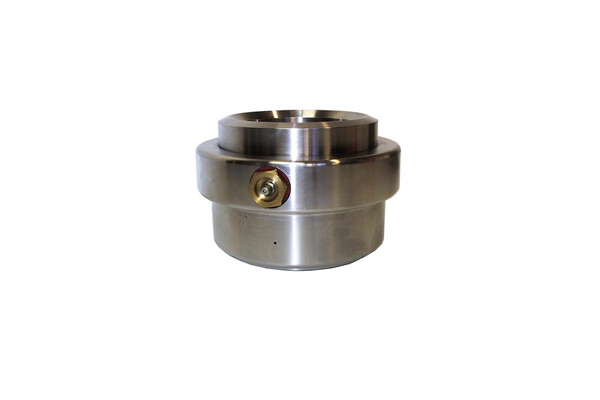

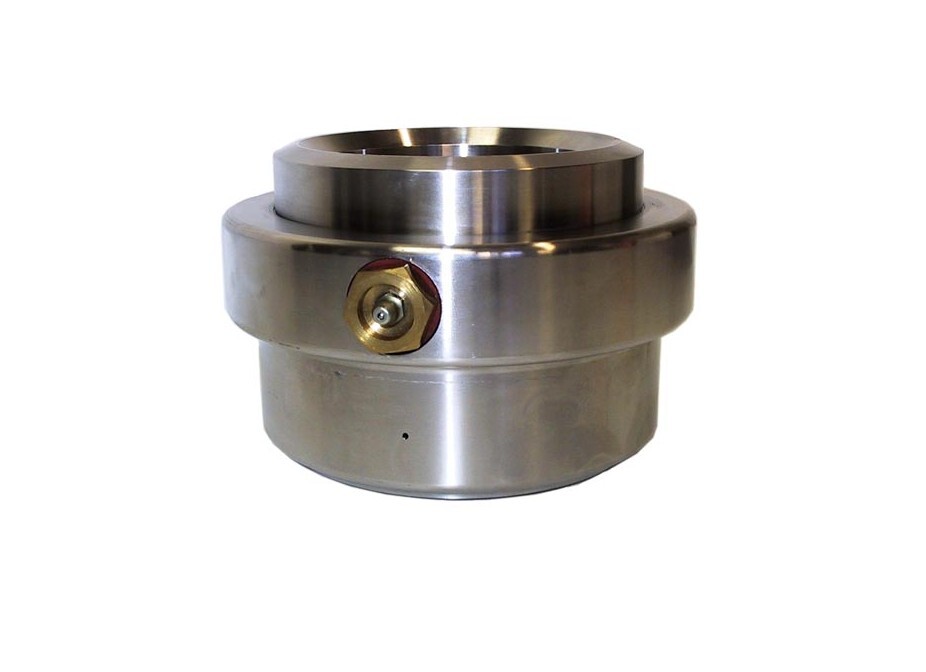

Weld On Swivels-SJW Series


Sorry About That… This Product is an Obsolete Item…


This product is no longer available. To assist you with finding an alternative product that will perform the same function we have offered some suggested replaceable products below.

We have also made information about obsolete products available to assist with purchasing spare parts that may still be available. You can view obsolete product information by searching for product codes in our SEARCH bar.

If you would like any further information regarding our parts please don’t hesitate to contact your local Liquip representative and we will get back to you as quickly as possible.

The SJW range of weld on swivels are used for the fabrication of loading arms and pipework requiring up to 360° rotational joints.

They are machined from Nitrided Steel with pre-prepared ends for welding directly to pipe or tube.

Suitabe for :



Recommended products for replacement

Categories
Features & Benefits
  • Cost-effective way of achieving a rotating joint, for loading arms or other equipment requiring swivelling joints.

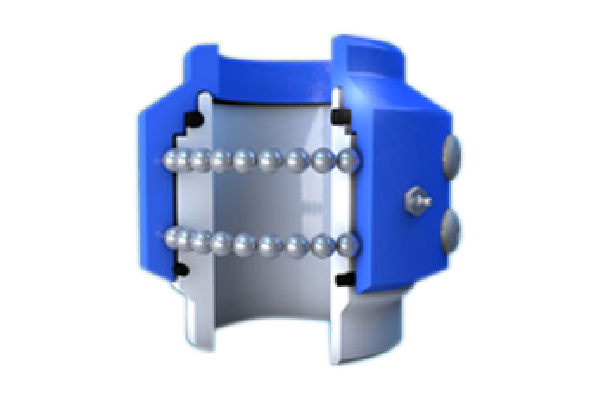

  • Sealing is enhanced by the purpose designed Viton™ primary seal, and two Viton™ O-rings, which isolate the bearing pack from product leaks.
  • In the unlikely event that the primary seal leaks, the  product is contained by the O-ring before it can wash grease from the bearings causing them to fail in operation.
  • Any leaks are immediately visible from a tell-tale weep hole.
  • The greasing system incorporates the Liquip trade-mark pressure relief outlet to ensure correct lubrication, by ejecting old grease and particles that can cause wear.
Technical Information

SJW Series
Operating temperature
-20°C to +220°C.

Sizes
4"

Materials
Stainless Steel or Mild Steel.

Working pressure
1,100 kPa.

Test Pressure
1,650 kPa.

Mounting
Weld on.

Weight
4.3kg.

Ordering Information

SJW Series - 4" Only

SJW100MMVZ - SJW Weld-On 4” Swivel Mild Steel, Viton Main Seal.
