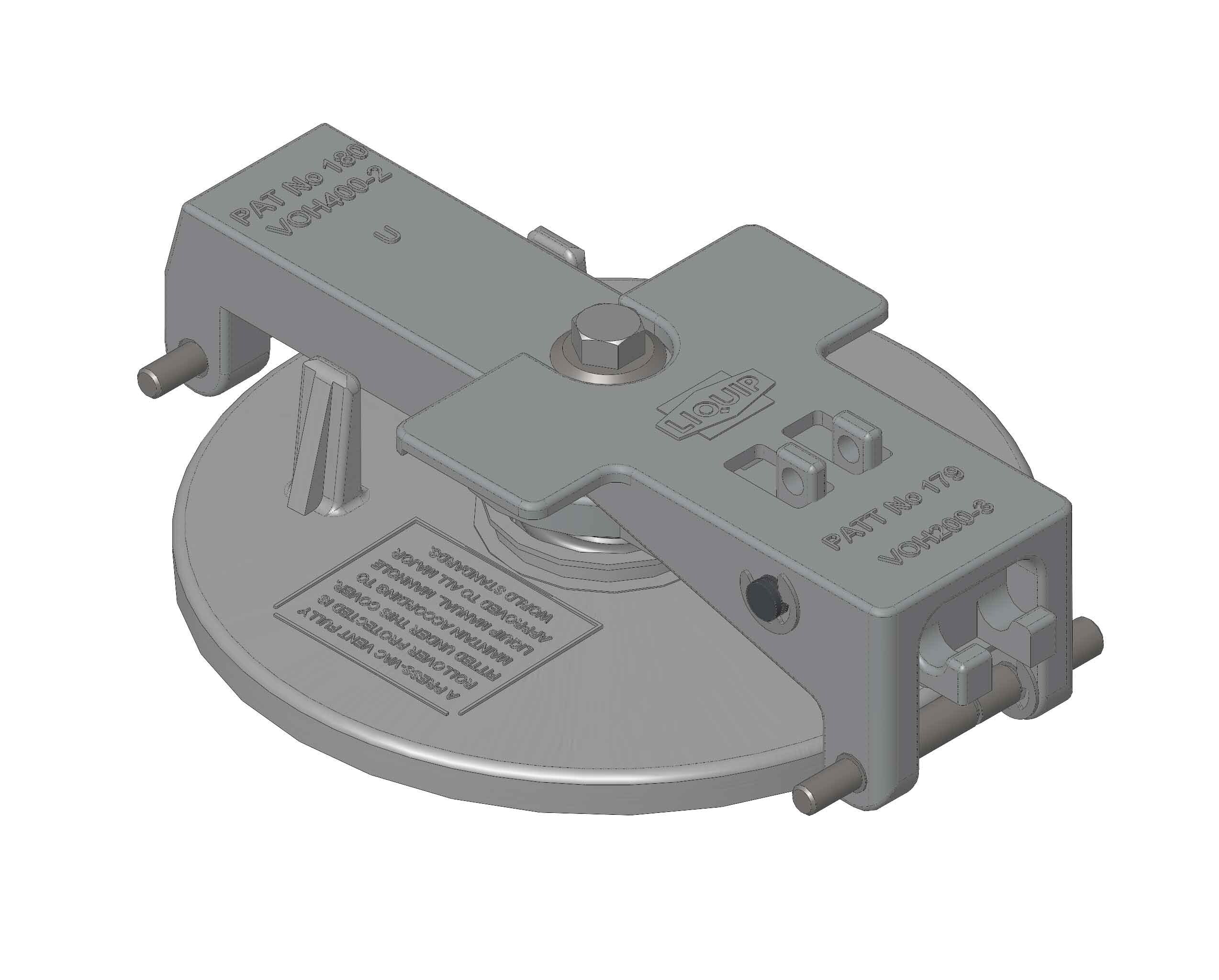

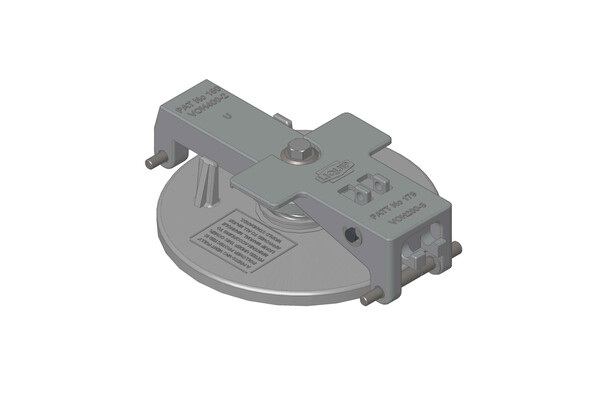

9" Emergency Hatch Sub-assembly



Tanker top manhole Ø230mm quick-opening inspection hatch sub-assembly that doubles as emergency vent with provision for pressure/vacuum relieving vent and rollover protection. Must be fitted to a VOH manhole (supplied separately). Now supplied in metric.

Features & Benefits
  • Easy to open.
  • Two stage opening for added safety.
  • Lightweight aluminium construction.
  • Plain or lockable handle.
  • A key (VOH400-10, order separately) is required to access inspection hatch when fitted with lockable handle.
  • Pressure/vacuum vent mounts onto underside of the sub-assembly (PVV valve, order separately).

Technical Information

Operation
Handle may be opened (a key is required for VOH50x-33 lockable versions) to allow bridge & vent lid to swing away and make inspection hatch accessible.

Both handles may be locked with additional padlock (not supplied).

Mounting
Mounts onto all Liquip VOH series manholes with hinge pins provided.

Materials
All major components are aluminium.
Vent seal is nitrile rubber.

Ordering Information
  30kPa spring (6108)
& label 7321 to suit PVV104M
24kPa spring (4464)
& label 7322 to suit PVV104UM
30kPa spring (6108)
& label 7324 to suit PVV104UM
VOH200-3
Plain Handle
VOH501-32A VOH501-32B VOH501-32U
VOH400-7 Lockable Handle VOH501-33A VOH501-33B VOH501-33U
PVV to be used PVV104M PVV104UM PVV104UM



9" Lid Common Spare Parts

0236: Seal Nitrile 9" Hatch Lids.
7141: Bellow EPDM to suit 9" Hatch Lids.
6108: Spring Z/P to suit VOH50x-3xA
4464: Spring Z/P to suit VOH50x-3xB or VOH50x-3xU.

Resources
Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
Submit Enquiry
Submit a product Enquiry / Quote to Liquip customer service
Save as Wishlist
Save as Wishlist - handy function for account holders
Send to a Friend
Send you selection of products to a friend via a convenient email link
Item Description
Add Item into Enquiry Cart
9" EMERGENCY HATCH COMMON SPARE PARTS
0236 SEAL NITRILE 9" HATCH LIDS
LIQ7141 BELLOW EPDM WASHPROOF MANHOLE
6108 SPRING Z/P PRESSURE VOH AUST
4464 SPRING Z/P PRES VOH700U
9" EMERGENCY HATCH SUB-ASSEMBLIES
VOH501-33A EMERGENCY VENT SUB-ASSY LOCK HANDLE AUS SPRING - METRIC THREADS
VOH501-32B EMERGENCY VENT SUB-ASSY PLAIN HANDLE 24KPA (3PSI) SPRING - METRIC THREADS
VOH501-33B EMERGENCY VENT SUB-ASSY LOCK HANDLE 24KPA (3PSI) SPRING - METRIC THREADS
VOH501-32U EMERGENCY VENT SUB-ASSY PLAIN HANDLE 30KPA SPRING - METRIC THREADS
VOH501-33U EMERGENCY VENT SUB-ASSY LOCK HANDLE 30KPA SPRING - METRIC THREADS
VOH501-32A EMERGENCY VENT SUB-ASSY PLAIN HANDLE AUS SPRING - METRIC THREADS
