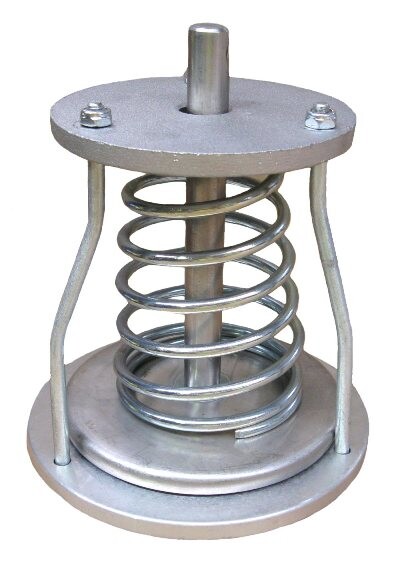

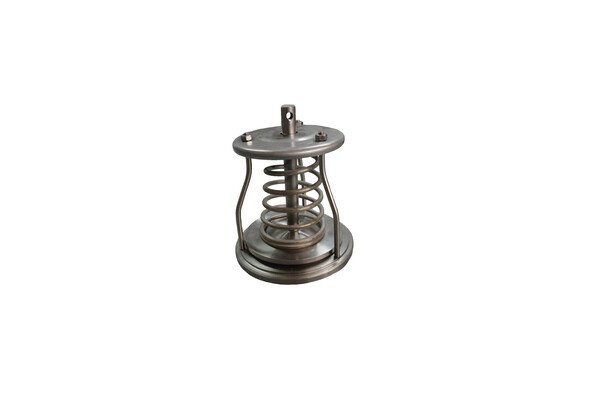

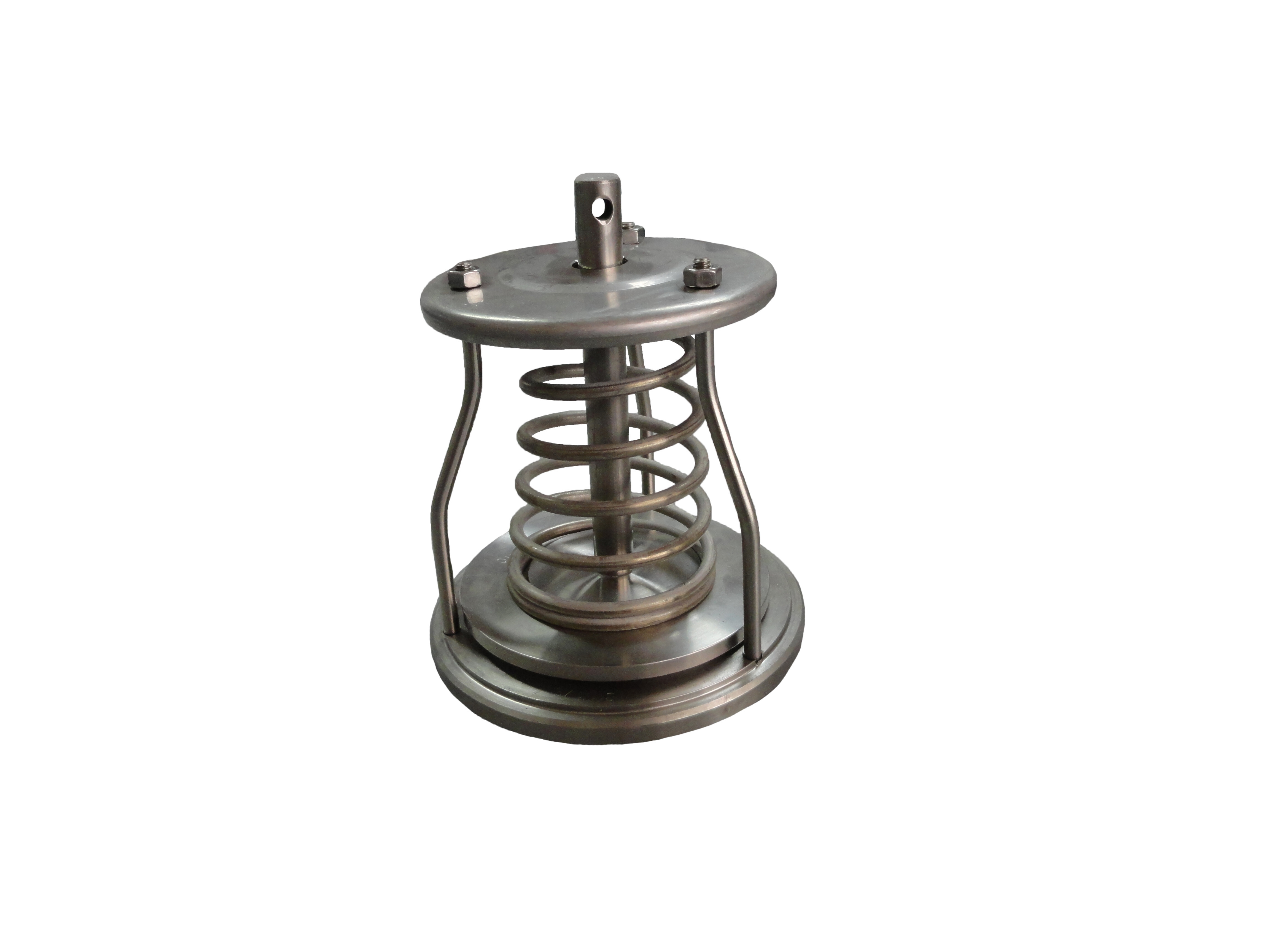

ITV4 Series Internal Chemical Valve

Stainless Steel Valve with Teflon Trim for Mild Chemicals
This unit is constructed of stainless steel components and provides a non-contaminating valve for use with a wide range of chemical products.

Tapered seat provides improved sealing with Teflon.

Teflon seals are available in basic form for top operation or with bottom operating elbow.

  • Opens under 35 kPa pressure from below.
  • Permissible lift 50mm.
  • All components are stainless steel. E.g. Spring retainer, poppet and seat.
  • All Teflon seals.
  • Tank weld flange supplied separately.
  • Weight: 1.8kg.

ITV4-B-ST-316*: Internal Chemical Valve.

* Parts are made to order and hold minimum order quantities. Please consult Liquip for further information.

  • SE4* - Outlet elbows (plain).
  • OLE4* - Outlet elbows (operating).
  • CL401RST316* - Stainless Steel Top Operators.
  • ITV4-14* - Deflector.
  • LW410 - Lifting Wire.

* Parts are made to order and hold minimum order quantities. Please consult Liquip for further information.
