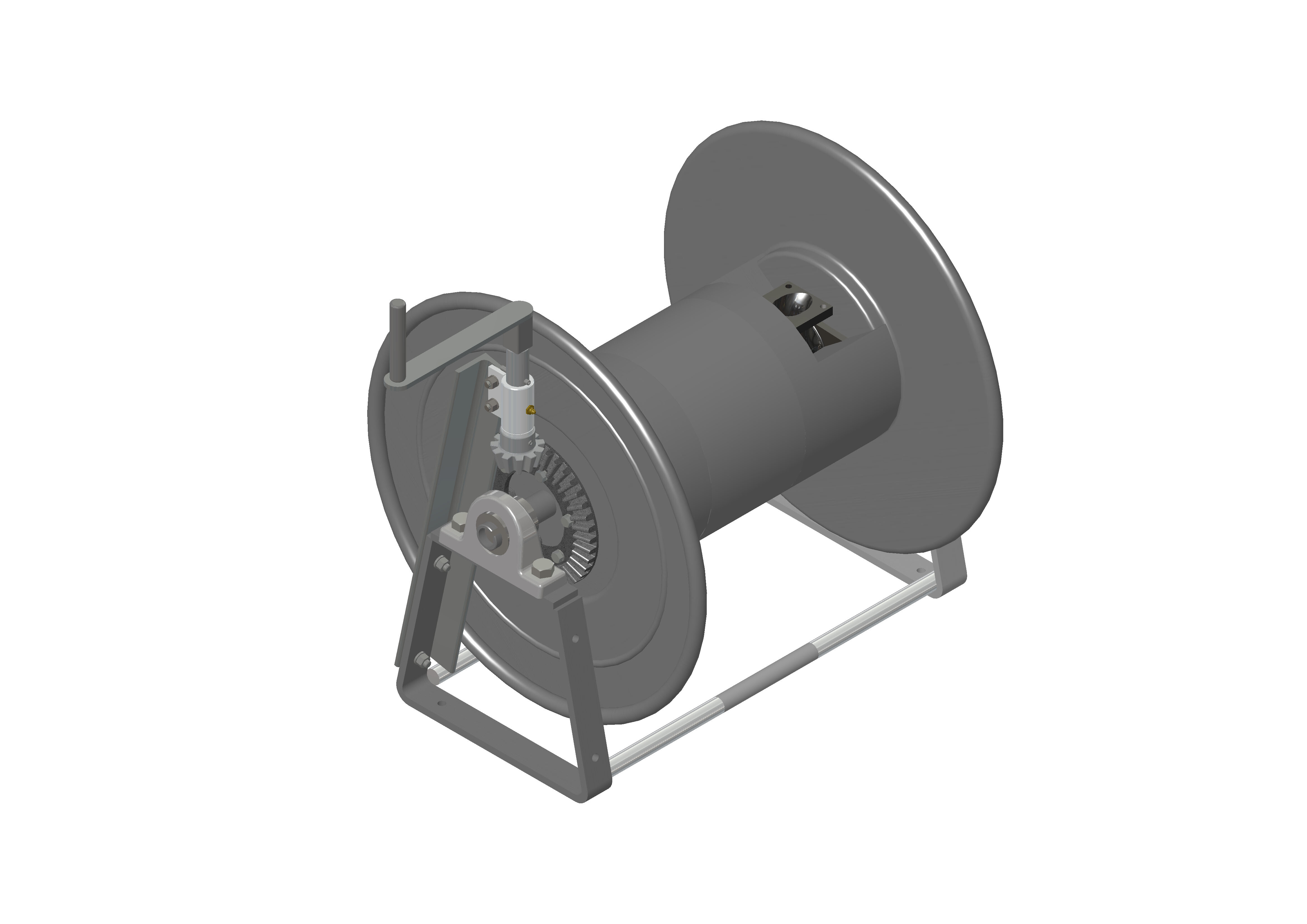

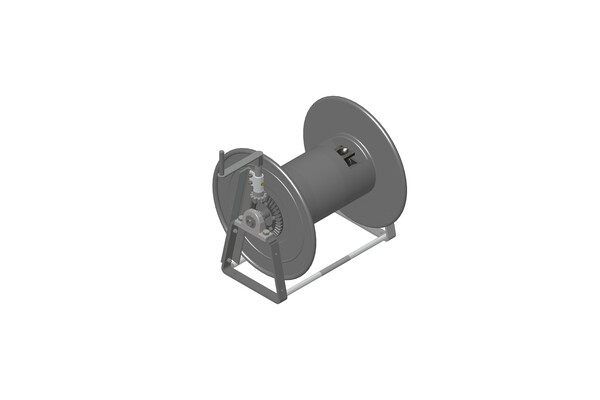

Front Rewind High Pressure Hose Reels (Obsolete product)



The FR series of high pressure hose reels are suitable for petroleum products and are available in different sizes.

The front rewind reels have robust construction – stiffened cheek plates, extremely sturdy thick wall manifold with added strength from steel inner drum, steel base frame and self aligning bearing.

Sorry About That… This Product is an Obsolete Item…

This product is no longer available. To assist you with finding an alternative product that will perform the same function we have offered some suggested replaceable products below.

We have also made information about obsolete products available to assist with purchasing spare parts that may still be available. You can view obsolete product information by searching for product codes in our SEARCH bar.

If you would like any further information regarding our parts please don’t hesitate to contact your local Liquip representative and we will get back to you as quickly as possible.


Features & Benefits
  • Flow area is equal to 38mm throughout.
  • All components are easily replaced as required.
  • Sealing is by lip seal.
  • Built tough to last in the harshest conditions.
  • All models incorporate an optional lock.
  • Optional anti-rotation lock to prevent hose unravelling.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Information

    Pressure tested & rating
    Up to 2,100kPa.

    Periodic Service
    Quarterly grease plummer block bearing.

    Mounting
    4 x M10 Bolts.

    Variants
    Can suit 25mm, 32mm & 38mm diameter hoses.

    Rewind Mechanism
    Hand Rewind.

    Drum widths
    300mm (12"), 400mm (18") or 600mm (24").

    Ordering Information

    Select model using the below configurator e.g. FRxxHP2





    FR

    Width (Inches)





    HP2

    12

    18

    24

    Options (contact Liquip for further details)

    LPG spec
    Aviation spec
    Galvanised drum/frame
    Lockable version
    Associated Equipment

    AHR250D: Aviation drum style hose reel.

    AHR250: Cartwheel type hosereels:

    295SACJ-0200: Aviation spec nozzle.

    Nickel plated steel gooseneck with st steel inlet flange available.

    Nickel plated gooseneck with 1 ¼” MBSPP thread available for aviation and water use.

    Rollers and guides.

    Resources
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Image Item Description
    FR12HP2 12" HIGH PRESSURE HOSEREEL ASSEMBLIES FRONT REWIND (Obsolete item)
    FR18HP2 18" HIGH PRESSURE HOSEREEL ASSEMBLIES FRONT REWIND (Obsolete item)
    FR24HP2 24" HIGH PRESSURE HOSEREEL ASSEMBLIES FRONT REWIND (Obsolete item)
