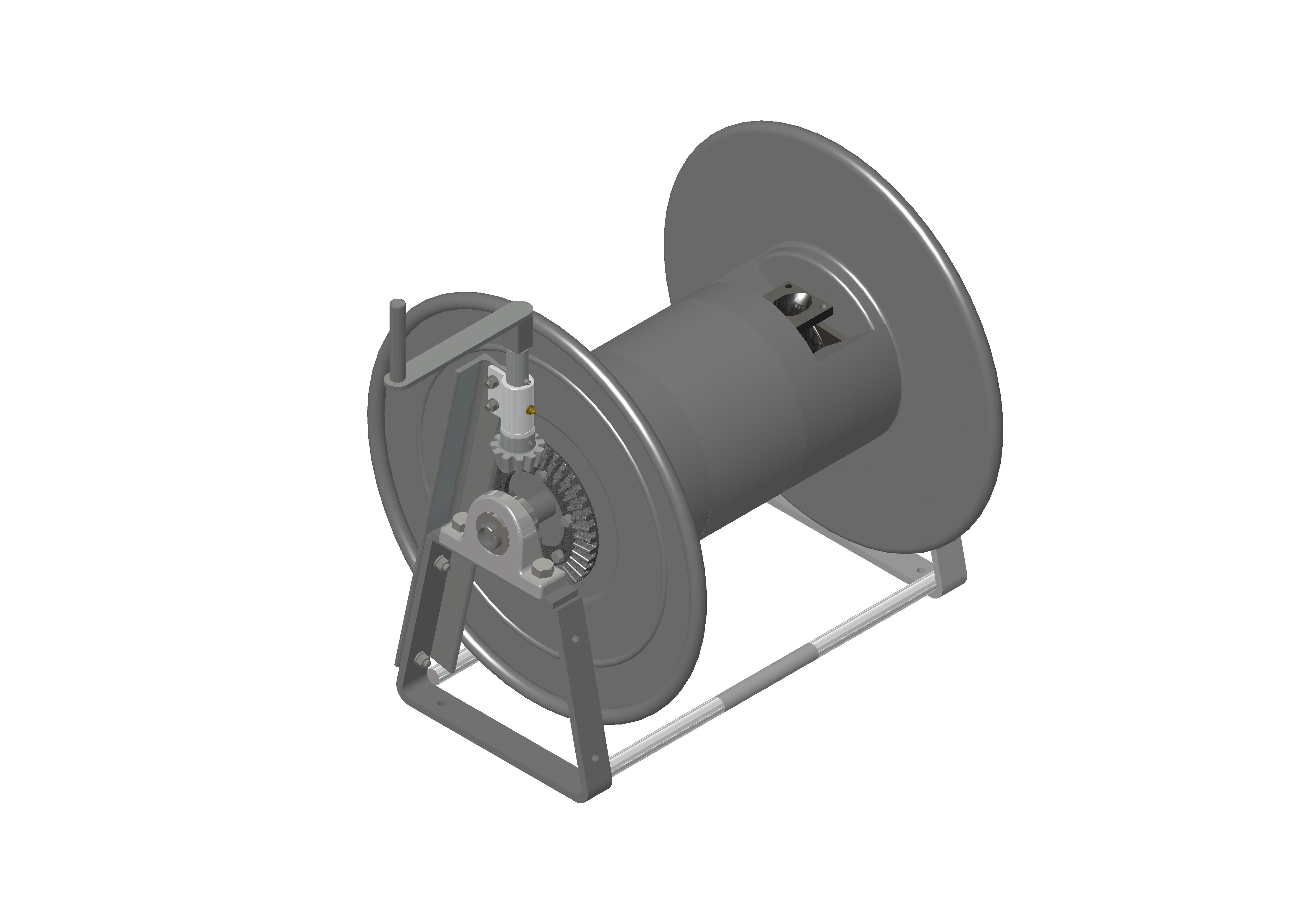

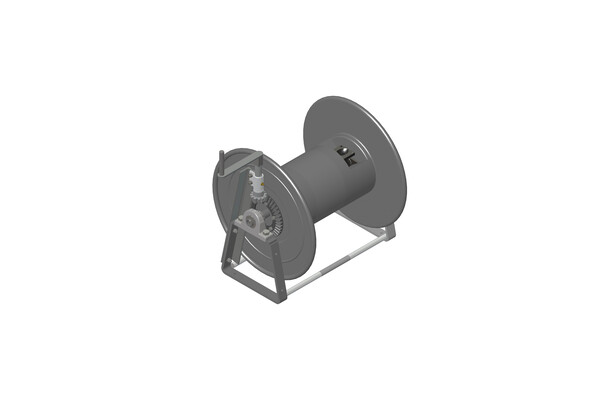

Front Rewind High Pressure Hose Reels



The FR series of high pressure hose reels are suitable for petroleum products and are available in different sizes.

The front rewind reels have robust construction – stiffened cheek plates, extremely sturdy thick wall manifold with added strength from steel inner drum, steel base frame and self aligning bearing.

Sorry About That… This Product is an Obsolete Item…

This product is no longer available. To assist you with finding an alternative product that will perform the same function we have offered some suggested replaceable products below.

We have also made information about obsolete products available to assist with purchasing spare parts that may still be available. You can view obsolete product information by searching for product codes in our SEARCH bar.

If you would like any further information regarding our parts please don’t hesitate to contact your local Liquip representative and we will get back to you as quickly as possible.


Features & Benefits
  • Flow area is equal to 38mm throughout.
  • All components are easily replaced as required.
  • Sealing is by lip seal.
  • Built tough to last in the harshest conditions.
  • All models incorporate an optional lock.
  • Optional anti-rotation lock to prevent hose unravelling.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

Categories
Technical Information

Pressure tested & rating
Up to 2,100kPa.

Periodic Service
Quarterly grease plummer block bearing.

Mounting
4 x M10 Bolts.

Variants
Can suit 25mm, 32mm & 38mm diameter hoses.

Rewind Mechanism
Hand Rewind.

Drum widths
300mm (12"), 400mm (18") or 600mm (24").

Ordering Information

Select model using the below configurator e.g. FRxxHP2





FR

Width (Inches)





HP2

12

18

24

Options (contact Liquip for further details)

LPG spec
Aviation spec
Galvanised drum/frame
Lockable version
Associated Equipment

AHR250D: Aviation drum style hose reel.

AHR250: Cartwheel type hosereels:

295SACJ-0200: Aviation spec nozzle.

Nickel plated steel gooseneck with st steel inlet flange available.

Nickel plated gooseneck with 1 ¼” MBSPP thread available for aviation and water use.

Rollers and guides.

Resources
Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
Submit Enquiry
Submit a product Enquiry / Quote to Liquip customer service
Save as Wishlist
Save as Wishlist - handy function for account holders
Send to a Friend
Send you selection of products to a friend via a convenient email link
Image Item Description
FR12HP2 12" HIGH PRESSURE HOSEREEL ASSEMBLIES FRONT REWIND (Obsolete item)
FR18HP2 18" HIGH PRESSURE HOSEREEL ASSEMBLIES FRONT REWIND (Obsolete item)
FR24HP2 24" HIGH PRESSURE HOSEREEL ASSEMBLIES FRONT REWIND (Obsolete item)
