R Series Lightweight Hosereels - LPG Spec

Liquip’s all new R-Series drum style LPG hosereels provide the perfect balance of strength and reduced weight to allow for increased delivery efficiency and safety

Liquip hosereels are designed for tough conditions and the R-Series is no exception. Beyond incorporating Liquip’s proven technologies that work flawlessly in high pressure applications, the RxxxHPLPG incorporates the popular full circle swivel inlet design. The RxxxHPLPG withstands the harshest operating environments, offering exceptional quality and usability.

Featuring an all new stainless steel manifold, aluminium base frame, drum and cheek plates, it’s clear that no stone has been left unturned during the development of the R-Series reel.

ADD TO ENQUIRY CART REQUEST A QUOTE

Features & Benefits
Technical Information
Ordering Information
Associated Equipment
Resources

Features & Benefits

Lightweight design for increased payload capacity.
38mm flow path throughout.
The stainless steel NPT manifold and 1½" NPT gooseneck allows for LPG product compatibility.
The aluminium exterior eliminates the need for additional painting or coatings.
Manifold, shafts and seal components can be easily accessed from the outside providing ease of service and maintenance.
R-series can be manually, hydraulically or pneumatically operated.
Liquip's pneumatic motor can be effectively operated using Liquip's control valve (P/N -9953)
Mounting positions allow for easy retrofitting when replacing prior Liquip HR series hosereels.
A range of drum lengths available with the same hose capacity as their predecessors.
Left or Right hand configurable to ensure flexibility during installation.
Supplied as standard with an anti-rotation lock to prevent hose unravelling.
All reels are Australian made and supported through Liquip’s distribution network.
Standard Gooseneck is 1½" NPT.
Standard Swivel Inlet is 1½" FNPT LPG FC.
Suitable For:

Technical Information

Base Horeel
Max allowable working pressure	2,100 kPa
Periodic Service	Annually - check O-rings and replace as required.
Mounting	4 x M10 Bolts - see mounting footprint in datasheet.
Inlet and Outlet	38mm (1½”) NPT Gooseneck 1½” FNPT LPG FC Swivel Inlet, 90 Degree Swivel with Tri-directional movements of seal ring.
Rewind Options	Manual, Hydraulic or Pneuamtic (air).
Drum widths and weights (less motors)	310mm (12”) - 19kg 460mm (18”) - 20kg 610mm (24”) - 21kg
Materials	Stainless steel 304: manifold, gooseneck and wetted components. Aluminium: cheek plates and drum. Nitrile seals (Viton seals available on request).
310HP Hose Capacity	Hose size	Capacity
	¾"	62
	1" (with beads)	39 (11)
	1¼" (with beads)	24 (9)
	1½" (with beads)	22 (4)
460HP Hose Capacity	Hose size	Capacity
	¾"	93
	1" (with beads)	64 (18)
	1¼" (with beads)	35 (14))
	1½" (with beads)	33 (5)
610HP Hose Capacity	Hose size	Capacity
	¾"	137
	1" (with beads)	88 (25)
	1¼" (with beads)	53 (21)
	1½" (with beads)	48 (8)

Pneumatic Motor
Min pressure	400 kPa (4 Bar/60psi)
Hosereel Speed	55 RPM - AR310HP 61 RPM - AR460HP / AR 610HP
Air Tank Size	200 Litres
Max Air Consumption	1100 (Nl/min) at 620 kPa - AR310HP 1,600 (Nl/min) at 620kPa - AR460HP/AR610HP
Hydraulic Motor
Max Inlet pressure	17,500 kPa (175bar/538 psi)
Max Fluid Flowrate	60LPM
FT1251538 Flow Control Valve	210 bar Working Pressurre 30LPM Recommended Max Flow Rate
5412 Hydraulic Control Valve	4 Spool only, 45LPM rated flow
Manual Rewind
Winding Force Requirement	15kg (force)

Ordering Information

Rewind Mechanism, Goosenecks, Motor and Control Assemblies

Category	Item	Description
Goosenecks	R310HP-4LPG	Gooseneck S/S - 1½” NPT
Pneumatic Rewind	5383	Pneumatic motor for AR310HP
	9950	Pneumatic motor for AR460HP and AR610HP
	R310HP-26	5383 Pneumatic motor with gearbox assembly to suit AR310HP series hosereels
	R310HP-26L	9950 Pneumatic motor with gearbox assembly to suit AR460HP/ AR610HP series hosereels
	9953	Air Valve - Pull hand lever to suit penumatic R series hosreel
Hydraulic Rewind	1295	Hydraulic motor Danfoss
	5412	Hydraulic control valve (Motor Spool 2000psi relief spring centred dented to port A)
	FT1251538	Flow Control Valve ⅜ Adjustable
Manual Rewind	R310HP-31	Manual crank handle and gearbox assembly
Manual Rewind	R310HP-34	Handle Assembly only

Associated Equipment

R-Series Hosereels- Standard: RxxxHP

Cartwheel/Catherine Style Hosereels - Standard: AHR250 series.

Aviation Drum style hosereels: AHR250D series (suit 2” hoses).

Recommended hose: Elaflex LPG delivery hose - EN1762.

Recommended swivels: LIQSMAC-112LN 90 Degree FC swivels.

LPG nozzles: Rego A7797A or Marshall Excelsior ME1075 Series.

Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.

Submit Enquiry

Submit a product Enquiry / Quote to Liquip customer service

Save as Wishlist

Save as Wishlist - handy function for account holders

Send to a Friend

Send you selection of products to a friend via a convenient email link

Image	Item	Description
LPG HOSEREELS ASSEMBLIES - HYDRAULIC READY

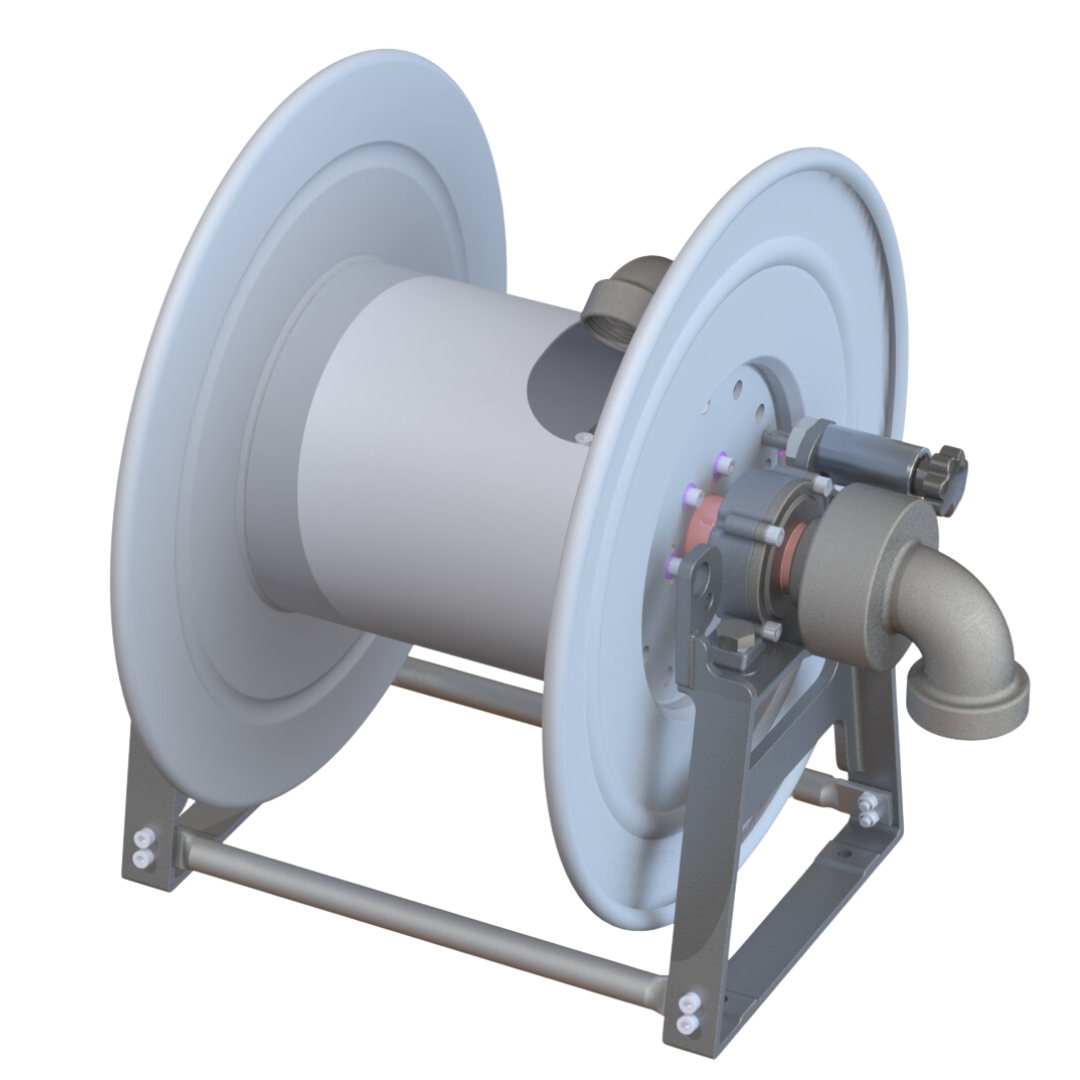

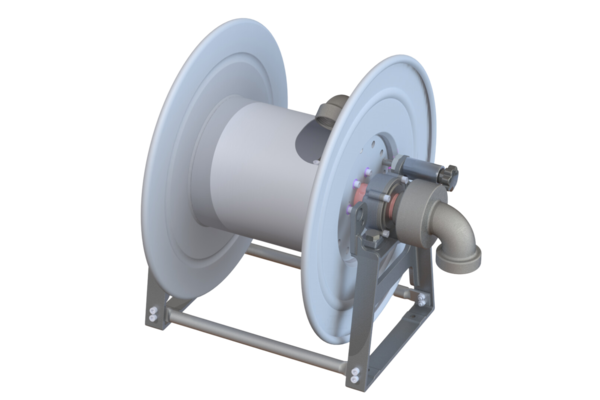

	R310HPLPG	310mm (12”) - Hydraulic Rewind - High Pressure hosereel comes with motor mount bracket - LPG SPEC.

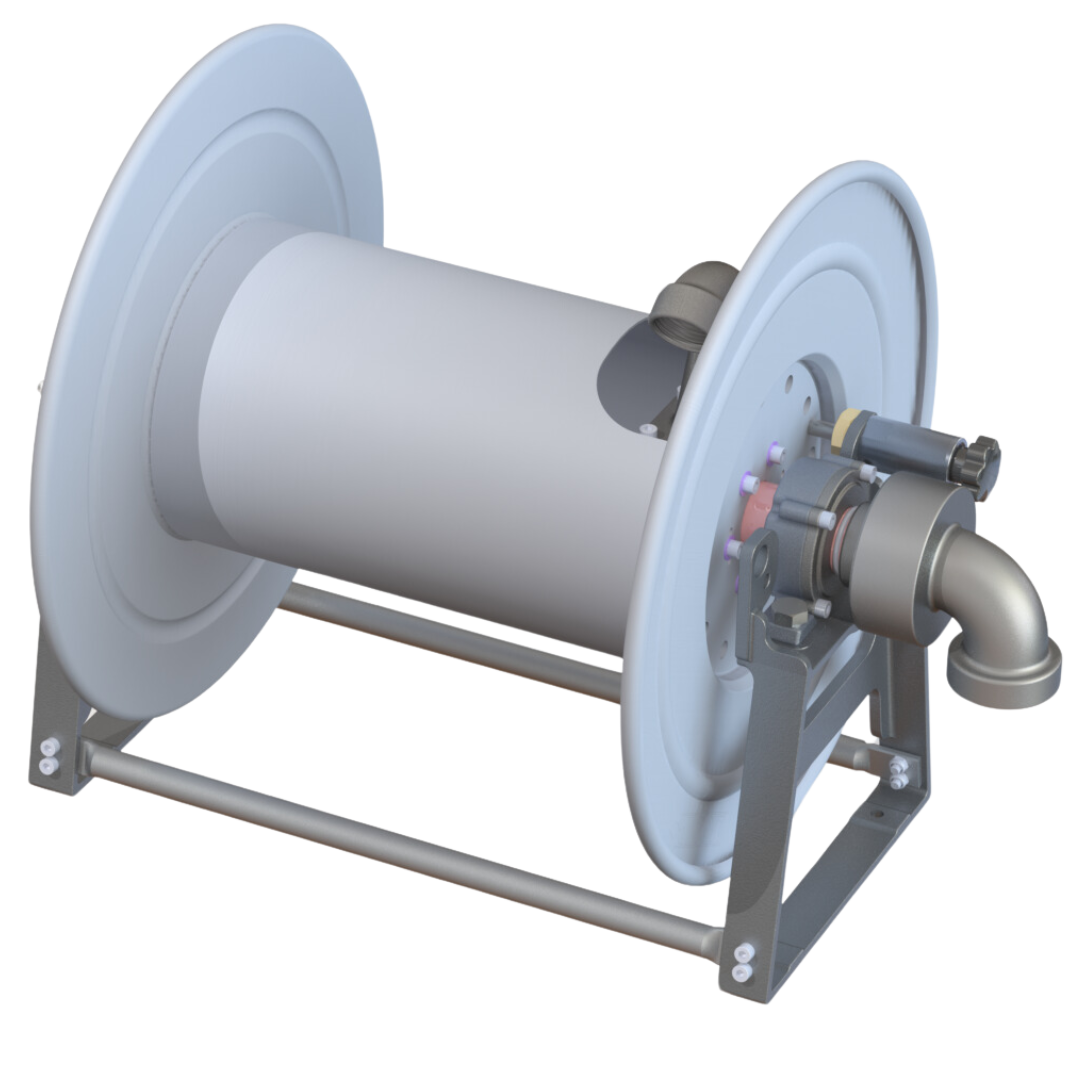

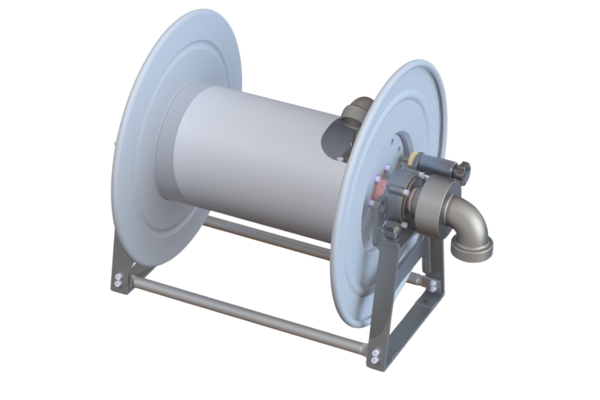

	R460HPLPG	460mm (18”) - Hydraulic Rewind - High Pressure hosereel comes with motor mount bracket - LPG SPEC.

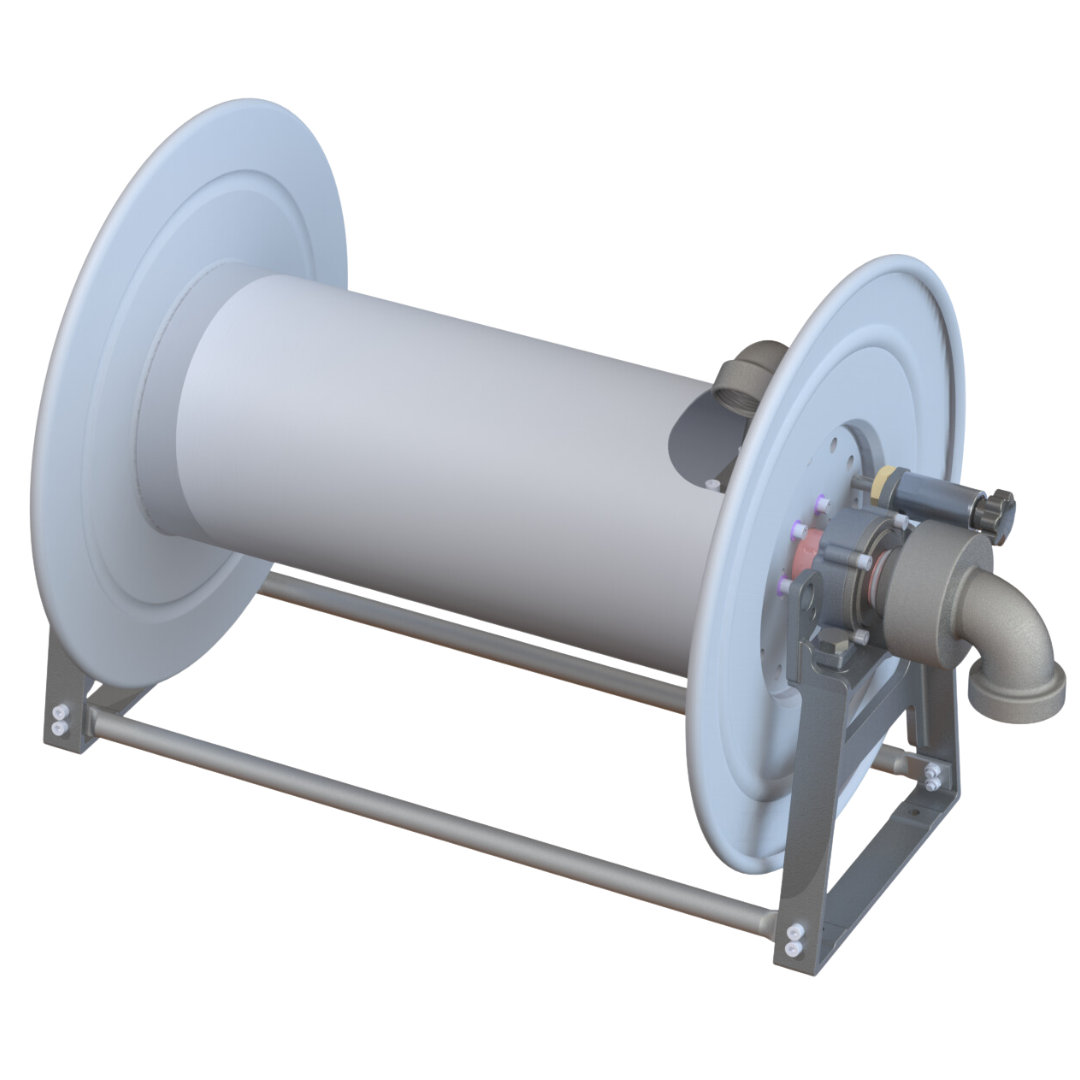

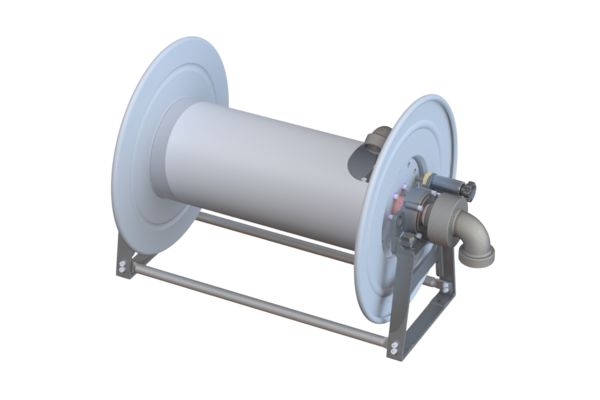

	R610HPLPG	610mm (24”) - Hydraulic Rewind - High Pressure hosereel comes with motor mount bracket - LPG SPEC.
MOTORS, GOOSENECKS AND CONTROL ASSEMBLIES

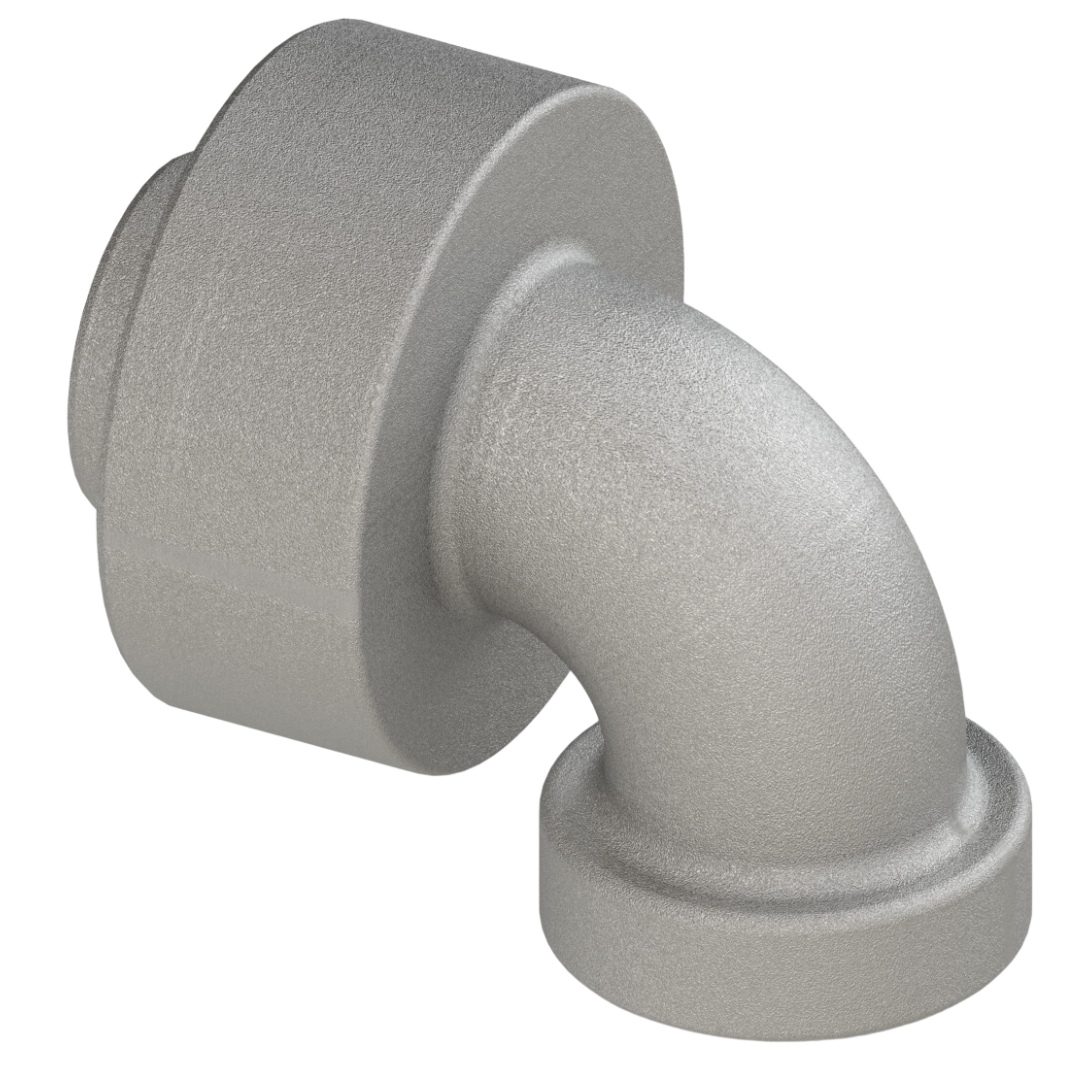

	LIQSMAC-112LN	Swivel Joint 90 Degree 1½” FNPT TO 1½" FNPT - Full Circle

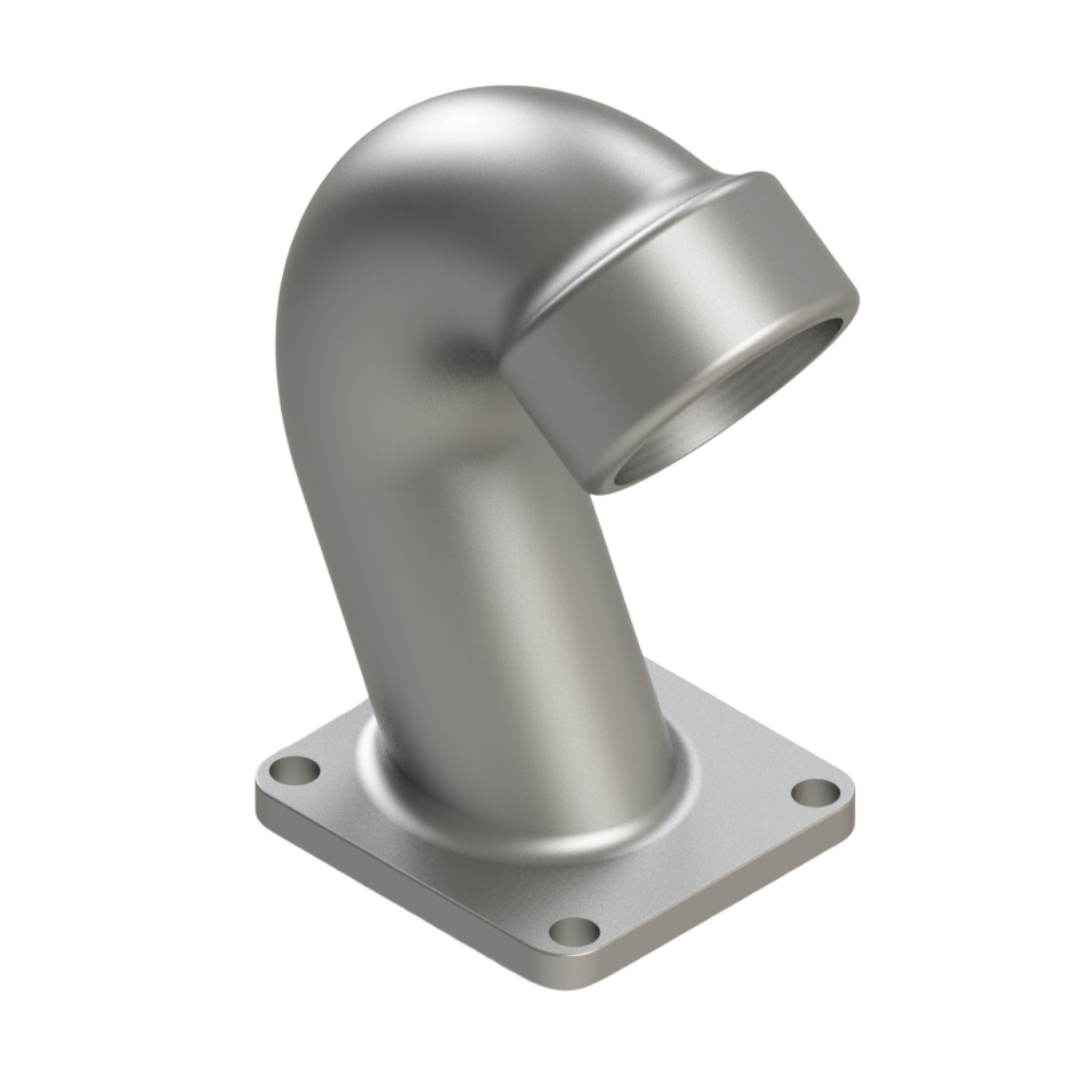

	R310HP-4LPG	Gooseneck S/S - 1½” NPT
