Hydrant Pit Valve CLA-VAL 352GF



The Cla-Val Model 352GF Hydrant Pit Valve is a piston style, pilot operated on / off valve designed for use in aircraft refueling hydrant systems.

The Model 352GF Hydrant Pit Valve can be ordered with either a manual deadman pilot or a pneumatic deadman pilot. When fitted with a pneumatic pilot, an optional emergency air release lanyard for manual override can be added to provide a way to close the pit valve even with deadman air pressure actively applied.

The outlet of the Model 352GF Hydrant Pit Valve can be connected to by any 4 inch API hydrant pit coupler, such as the Cla-Val Model 351GF-15 Hydrant Coupler and 353GF Pressure Control Coupler.

It complies with the requirements of EI Specification 1584 Fourth Edition.

The upper API body of the Model 352GF Hydrant Pit Valve is made of hardened stainless steel. The lower body is made of ductile iron. Aluminium is not used for these critical pressure containing components.


It incorporates a servicing valve which allows for the removal of the pilot for service without the need to de-pressurize the delivery system.

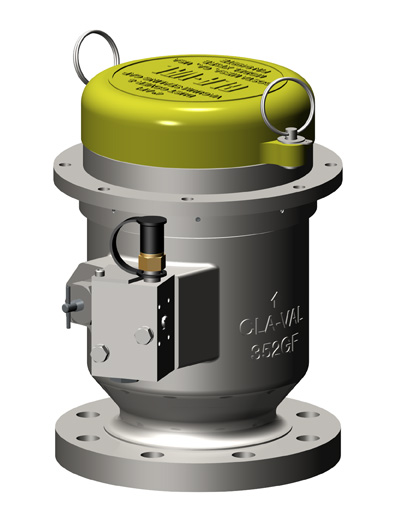

Hydrant Pit Valve Claval.png

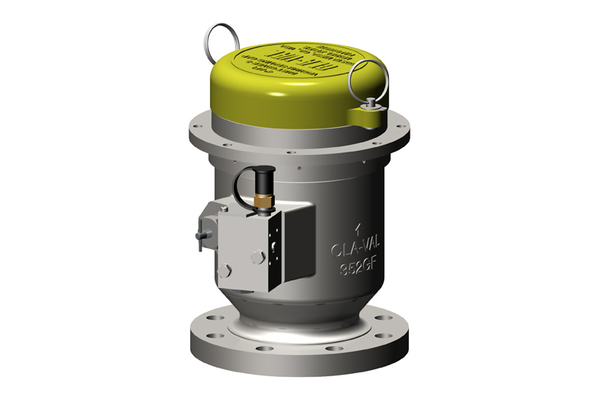

Hydrant Pit Valve Claval.png

Features & Benefits
  • Complies with EI Specification 1584 Fourth Edition
  • Body of Ductile Iron and Stainless Steel – No Aluminium
  • Stainless Steel Piston
  • Multiple Options for Pilot Operations
  • Optional Emergency Air Release Lanyard for the Pneumatic Pilots
  • Operating Temperature: -40 to +180 F (-40 to 80C)
  • Fits Within 13 Inch Diameter Pits
  • Optional Excess Flow Shut-off
  • Dust Cap included
  • Standard inlet flange mates with 4-inch 150lb ANSI flange.
  • 20 mesh screen option is available.
  • All seals are field replaceable.
  • 4" or 6" Stone guard option with Snap Ring

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Materials Specification

    Body Material
    Ductile Iron ASTM A536 65-45-12.

    API Adapter
    Stainless Steel.

    Pilot Valve
    Aluminium or Stainless Steel.

    Seals
    Nitrile and Fluorocarbon.

    Poppet
    Hard Anodised Aluminium.

    Piston
    Stainless Steel.

    Dust Cap
    Polyurethane Company.

    Corrosion Protection
    Electroless Nickel-Plated to MIL-C-26047 (4 to 6mm penetration).

    Ordering Information

    The base valve is a 352GF- and various modifications may be added by option letters as shown below.

    Option Description
    4 Pit Valve 4” Inlet ANSI 150
    6 Pit Valve 6” Inlet ANSI 150
    A Air / Fuel Pilot
    AD Air Pilot with Defuel
    M Manual Pilot
    AL Air Pilot with Override
    S4 Stone Guard 4” with Snap Ring
    S6 Stone Guard 6” with Snap Ring
    I 20 Mesh Strainer 4" and 6"

    Ordering Example
    352GF-4ALS4    : Standard pit valve with 4” inlet flange ANSI 150 with pneumatic operated pilot valve and lanyard override s/w stone guard on inlet

    For detailed models that are available please contact Liquip.
