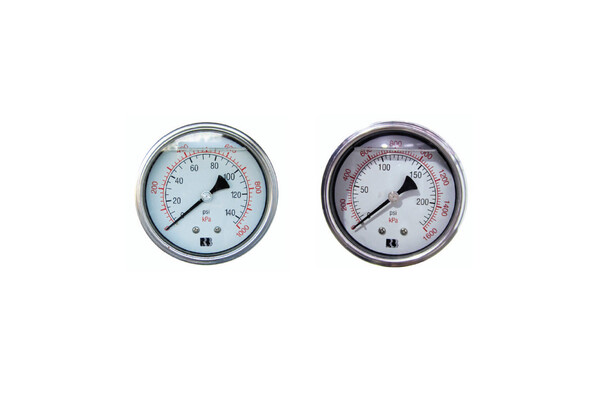

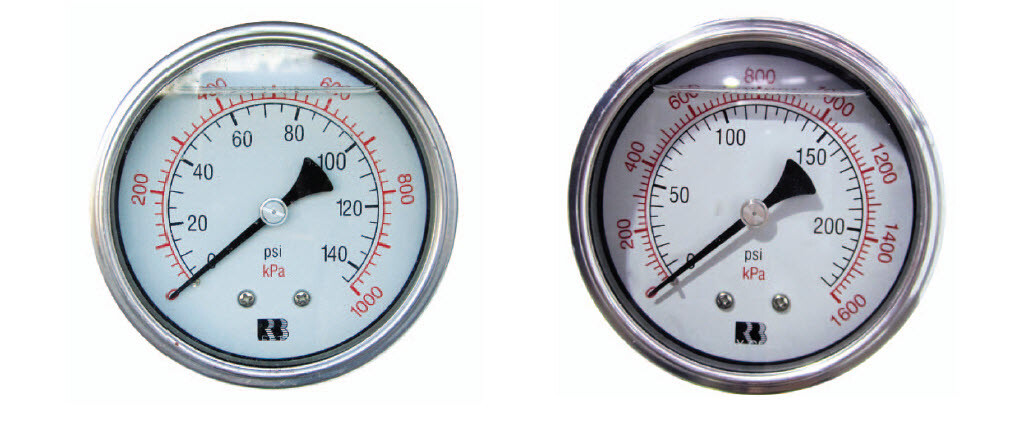

Pressure Gauges



These gauges are designed to resist pulsation, shock, vibration, weather and most corrosive atmospheres. Fluid medium which does not clog connection port or corrode 316 stainless steel.


Recommended products for replacement

    Technical Information

    Accuracy
    ±1% of Span (Grade A ANSI B40.1).

    Ranges
    0-1,000 kPa/psi and 0-1,600 kPa/psi.

    Operating Temperature
    Ambient = -20oC to 60oC.
    Media: max. +85oC.

    Connection
    Material: 316L Stainless Steel welded to case.
    Low back mount (LBM) 1/4" BSPT.

    Bourdon Tube
    Material: 316L Stainless Steel.
    30" Hg to 800 psi by C-type.

    Movement
    Stainless Steel

    Dial
    White painted aluminium

    Pointer
    Micro Adjustable

    Case
    304 Stainless Steel with polished twist lock ring, with panel mount clamp.

    Ring
    Bayonet SST ring with front flange.

    Window
    Tempered glass, sealed to case with gasket suitable for silicone.




    Ordering Information

    9095: 63mm gauge (0-1,000 kPa/psi).

    PGSS1000: 100mm gauge (0-1,000 kPa/psi).

    PGSS1600: 100mm gauge (0-1,600 kPa/psi).

    NB: Order options - Silicon fill.
