Type E Camlock Fittings

Liquip camlocks are built to NATO specification (MIL-C-27487 (Superceded by A-A 59326) and are of aluminium construction.

For Aviation selectivity Notches and pins are used to dedicate these couplings for use with Aviation Gasoline or Aviation Turbine Fuel, thus preventing the wrong product being loaded into the wrong tank. All Aviation units conform to Australian Code of Practice CP23.

Type E Adapter - Cam and Groove Male Adapter x Hose Tail.

Type E adapters are normally used with Type C couplers, but can be used with Type B and D couplers or Type DC (Dust Cap) of identical size.

Materials
Aluminium.

Sizes Range
1 ½ " to 4"

Item Description Size
NA40-22A      Camlock Male to Hosetail.       1½"
NA50-22A Camlock Male to Hoestail. 2"

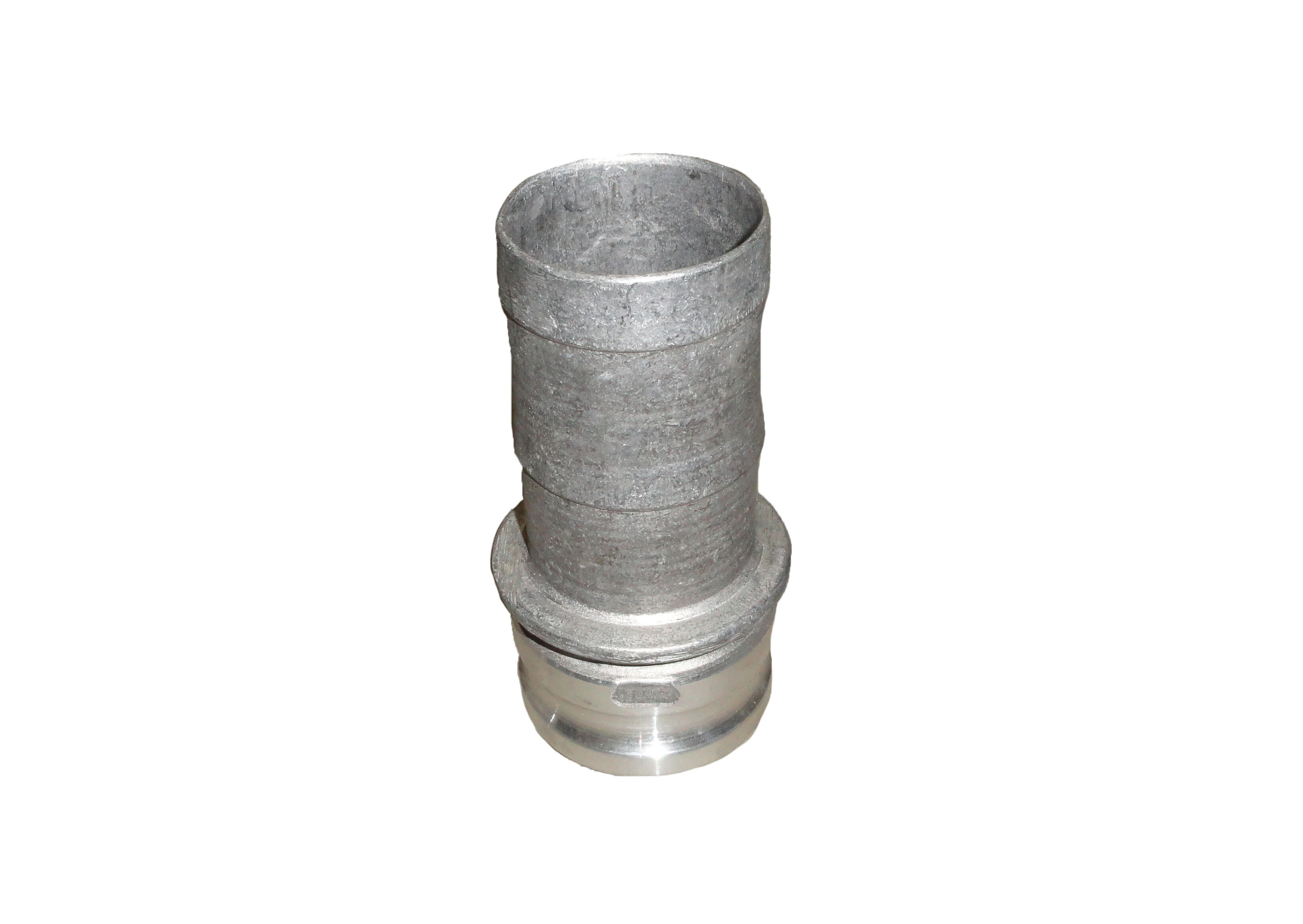

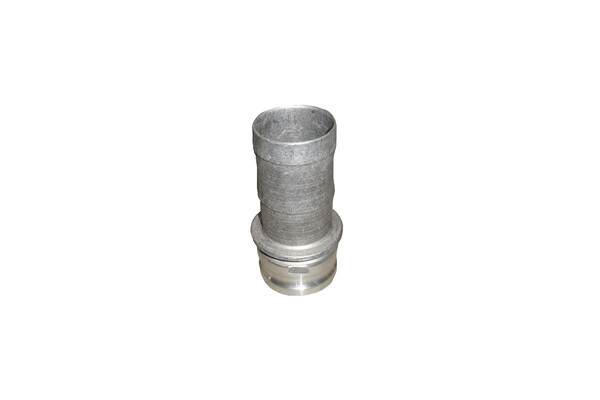

NA80-22A Camlock Male to Hosetail. 3"
NA100-22A     Camlock Male to Hosetail. 4"
