Type A Camlock Fittings



Liquip camlocks are built to NATO specification (MIL-C-27487 (Superceded by A-A 59326) and are of aluminium construction.

For Aviation selectivity Notches and pins are used to dedicate these couplings for use with Aviation Gasoline or Aviation Turbine Fuel, thus preventing the wrong product being loaded into the wrong tank. All Aviation units conform to Australian Code of Practice CP23.

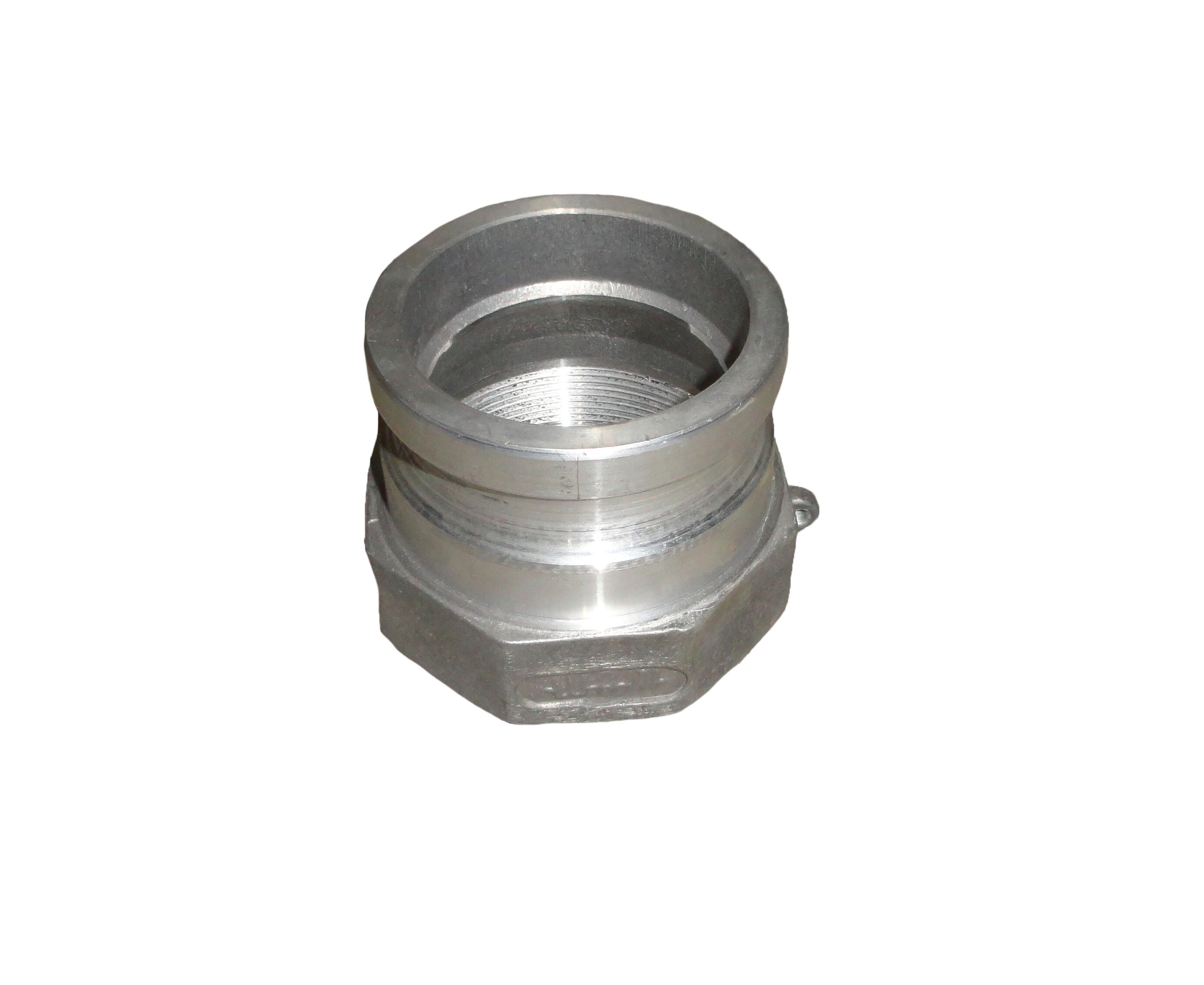

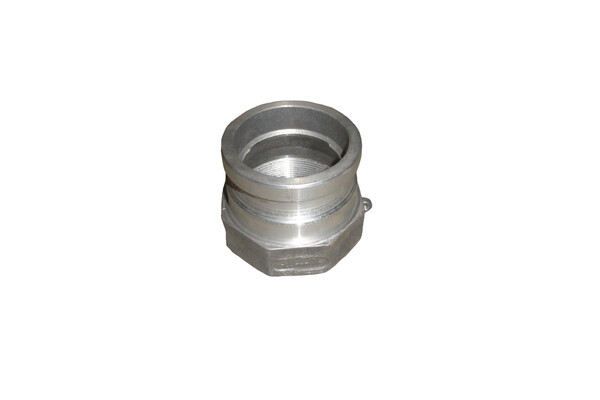

Type A Fittings - Cam and Groove Male Adapter x Female Thread.

Type A adapters are normally used with Type D couplers, but can be used with Type B and C couplers as well as Type DC (Dust Cap) of identical size.



Recommended products for replacement

    Technical Information

    Materials
    Aluminium.

    Sizes Range
    1 ¼ " to 4".

    Thread
    BSP.

    Ordering Information

    MALE CAMLOCK TO FEMALE BSP THREAD

    Item Camlock Thread Comments
    NA32-1A 1¼" 1¼"
    NA40-1A 1½" 1½"
    NA50-1A 2" 2"
    NA65-1A 2½" 2½"
    NA80-1A 3" 3"
    NA80-1G 3" 3" AVGAS Selective
    NA80-1J 3" 3" Jet Selective
    NA80-23-50A 3"  2"
    NA100-1A 4" 4"
    Resources
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Image Item Description
    Add Item into Enquiry Cart
    NA100-1A CAMLOCK MALE TO 4 FBSP
    NA32-1A CAMLOCK MALE TO 1 1/4 FBSP
    NA40-1A CAMLOCK MALE TO 1 1/2 FBSP
    NA50-1A CAMLOCK MALE TO 2 FBSP
    NA65-1A CAMLOCK MALE TO 2 1/2 FBSP
    NA80-1A CAMLOCK 3" MALE TO 3" FBSP AL
    NA80-1G CAMLOCK MALE 3" TO 3" FBSP AL - AVGAS SELECTIVE
    NA80-1J CAMLOCK MALE 3" TO 3" FBSP AL - JETA1 SELECTIVE
    NA80-23-50A CAMLOCK MALE TO 2 FBSP AL
