Pulsers

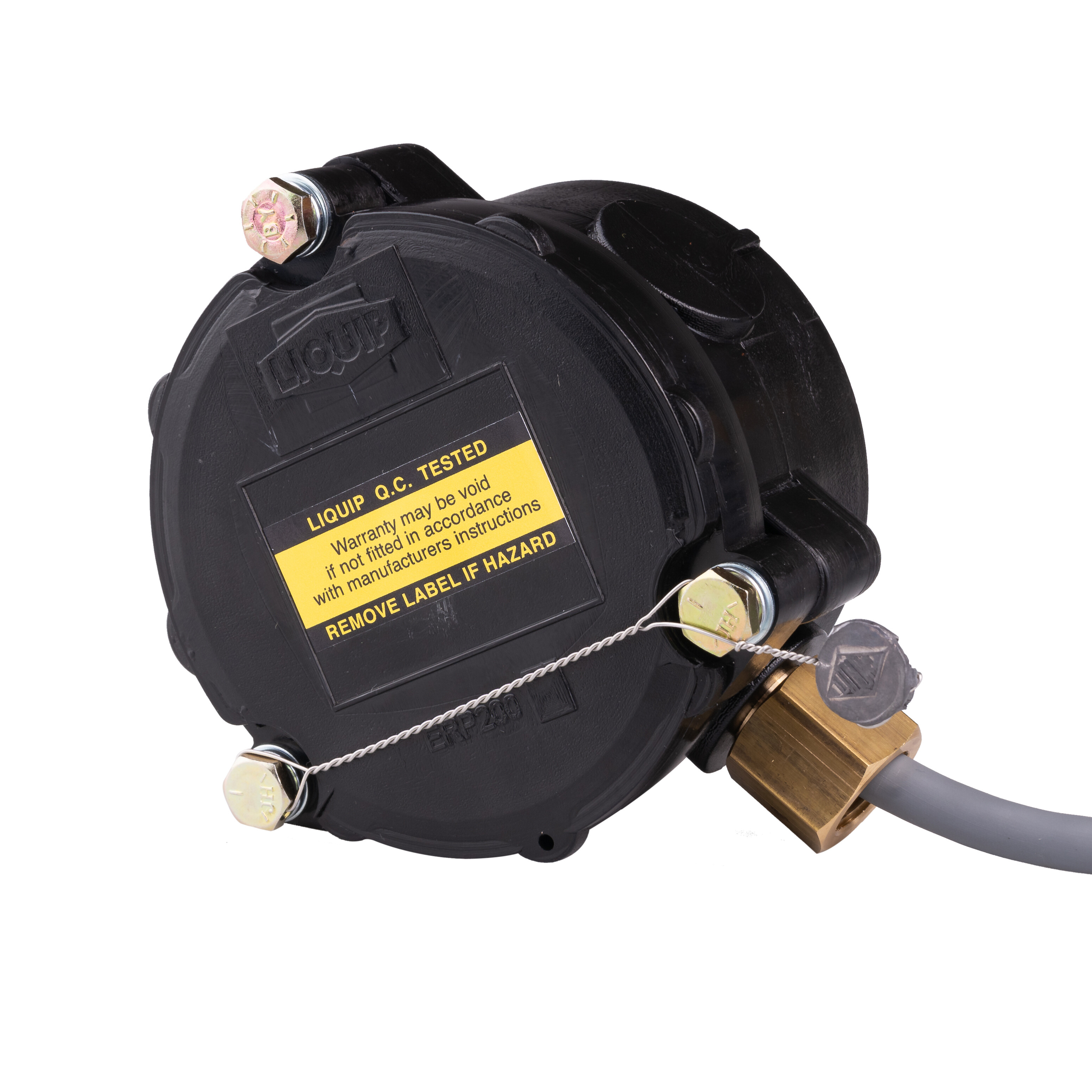

Liquip offers an electronic remote pulser to be used in conjunction with Liquip's electronic registers that are not located on the meter or where a register has no in-built pulse generator.

The ERP200 uses opto sensors to convert the rotational movement of the meter shaft into an electronic signal to the register.

With various weights and measures approval (see below) and
ATEX, IECEx and UKEX approvals for use in hazardous areas the
ERP200 is the ideal solution for all your metering and registering
needs.

Features & Benefits
  • Weights & Measures Approved: NMO UK, NMI Aus, W&M NZ, MID Europe, Measurement Canada & NTEP USA.
  • ATEX, IECEx and UKEX approved for use in Zone 0 hazardous locations.
  • 3 opto sensors allowing for 150 pulses per revolution, allowing the detection of flow direction, faulty opto sensors and/or loss of power.
  • Fully solid state electronic circuit.
  • Full weather sealed to IP66.
  • Lightweight assembly.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Information

    Operating Temperature
    -20°C to +60°C (Certification parameters).
    -40°C to +80°C (Safe zone parameters).

    Rotation
    Bi-directional.

    Input Shaft Speed
    1000 rpm maximum.

    Output Pulse (P1, P2, P3)
    Push-Pull Outputs.
    0V to +5VDC with in-line resistor 100R per channel. Square wave.

    K-Factor
    K= N pulses          pulses/rev/single channel = 25.
             litre             pulses/rev/combined 3 channel =150.

    Ordering Information

    ERP200: Electronic meter remote pulser.

    Associated Equipment

    DFV100: Register for use in zone 1 hazardous locations.

    DFV100H: Register with heated display (for non-hazardous locations).

    DFV103: Level Gauging CPU for use in zone 1 hazardous locations.

    DFV101: Combined register & level gauging CPU for use in zone 1 hazardous locations.

    DFV100-18: DFV Top mount bracket to suit various meters.

    DFV100-18SS: DFV Top mount bracket (Stainless Steel) to suit various meters.

    KITS TOP MOUNT

    EPM200-3Z: Meter kit for electronic remote pulser to top mount to Neptune meter.

    EPM200-4Z: Meter kit for electronic remote pulser to top mount to Sampi & Lc meters WITH calibrator.

    EPM200-7Z: Meter kit for electronic remote pulser to top mount to Lc meters NO calibrator (to suit Lc meter with old style drive).

    EPM200-9Z: Meter kit for electronic remote pulser to top mount to Lc meters NO calibrator (to suit Lc meter with hexagon drive).

    EPM200-5Z: Meter kit for electronic remote pulser to top mount to SBM meters.

    EPM200-6Z: Meter kit for electronic remote pulser to top mount to Smith meters.

    KITS DIRECT MOUNT

    EPM100-3Z: Meter kit for electronic remote pulser to direct mount to LC meters.

    EPM100-4Z: Meter kit for electronic remote pulser to direct mount to SBM meters.

    EPM100-7Z: Meter kit for electronic remote pulser to direct mount to Sampi meters.

    EPM100-8Z: Meter kit for electronic remote pulser to direct mount to Avery-Hardoll meters.

    Resources
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Image Item Description
    Add Item into Enquiry Cart

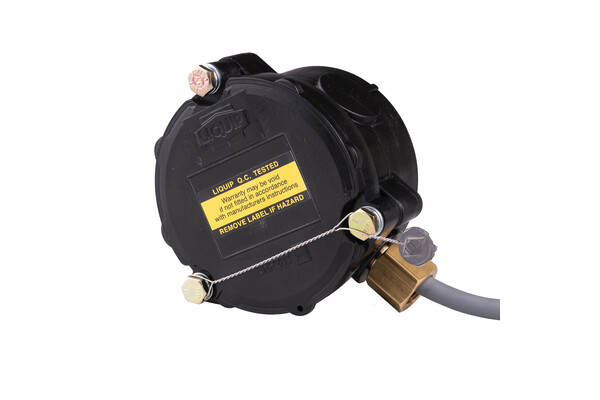

    ERP200 Electronic meter remote pulser
