Stainless Steel Overfill Protection Probes



Liquip’s LDP200 Series Stainless Steel Overfill Probes are used in overfill prevention systems on road tankers and storage tanks to detect the presence of a liquid at a defined level.

The probe’s stainless steel body and FFKM seals provide superior resistance to chemical corrosion, making them well-suited to Petroleum as well as Chemical Industry applications.

The LDP200 Series Probes are compatible with industry standard signal formats (EN 13922), providing interoperability with both Liquip’s existing Gantry Monitors and other compliant Monitors.

Liquip can supply LDP overfill probes as single units or in "Kits". A Kit is a part that combined two or more parts e.g. an LDP probe supplied with an extension and O-ring. Please see ordering information tab for further details on available kits.

Features & Benefits
  • Stainless steel body and FFKM seals provide superior resistance to chemical corrosion.
  • Compatible with industry standard signal formats (EN 13922)
  • A visible optic light in the sensor tip indicates whether it is dry and operational.
  • Independent visual test for function when in or out of the tanker.
  • Patented visible light - Technological breakthrough.
  • Glass prism is light-shielded by the retainer.
  • Probe can be removed from tank top without having access to interior to remove a hood.
  • Construction is fully sealed front.
  • Self healing epoxy at rear on cable entry.
  • Fully potted construction.
  • Range of probe extensions to suit various probe lengths.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Information

    Electrical Parameters
    IECEx: Ui = 30V, Ii = 690mA, Pi = 9W, Ci = 105pF, Li = 0mH.

    Operating Temperature
    -40ºC to +65ºC.

    IP Rating
    IP66.

    Level Repeatability
    ±0.5mm.
    Design Pressure: 600kPa.

    Power Limit
    (Pi = 9W) applies.
    Ii max = 690mA when Ui max = 13.04V OR
    Ii max = 300mA when Ui max = 30V.

    Safety Certification

    IECEx

    • IECEx Certificate: IECEx ITA 14.0014X.
    • Marking: Ex ia IIA T3 Ga IP66.
      Tamb = -40ºC to +65ºC.

    ATEX

    • ATEX Certificate ERO21ATEX0019X
    • Marking 2813 II 1 G Ex ia IIA T3 Ga
      Tamb = -40ºC to +65ºC.

    UKEX

    • UKEX Certificate EMA21UKEX0076X
    • Marking 0518 II 1 G Ex ia IIA T3 Ga IP66
      Tamb = -40ºC to +65ºC.
    Ordering Information

    SINGLE PROBES & KITS

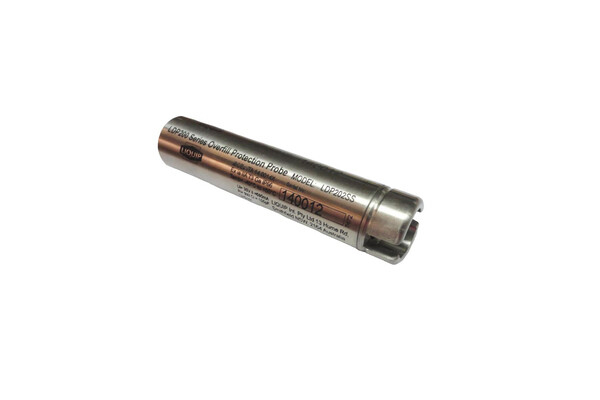

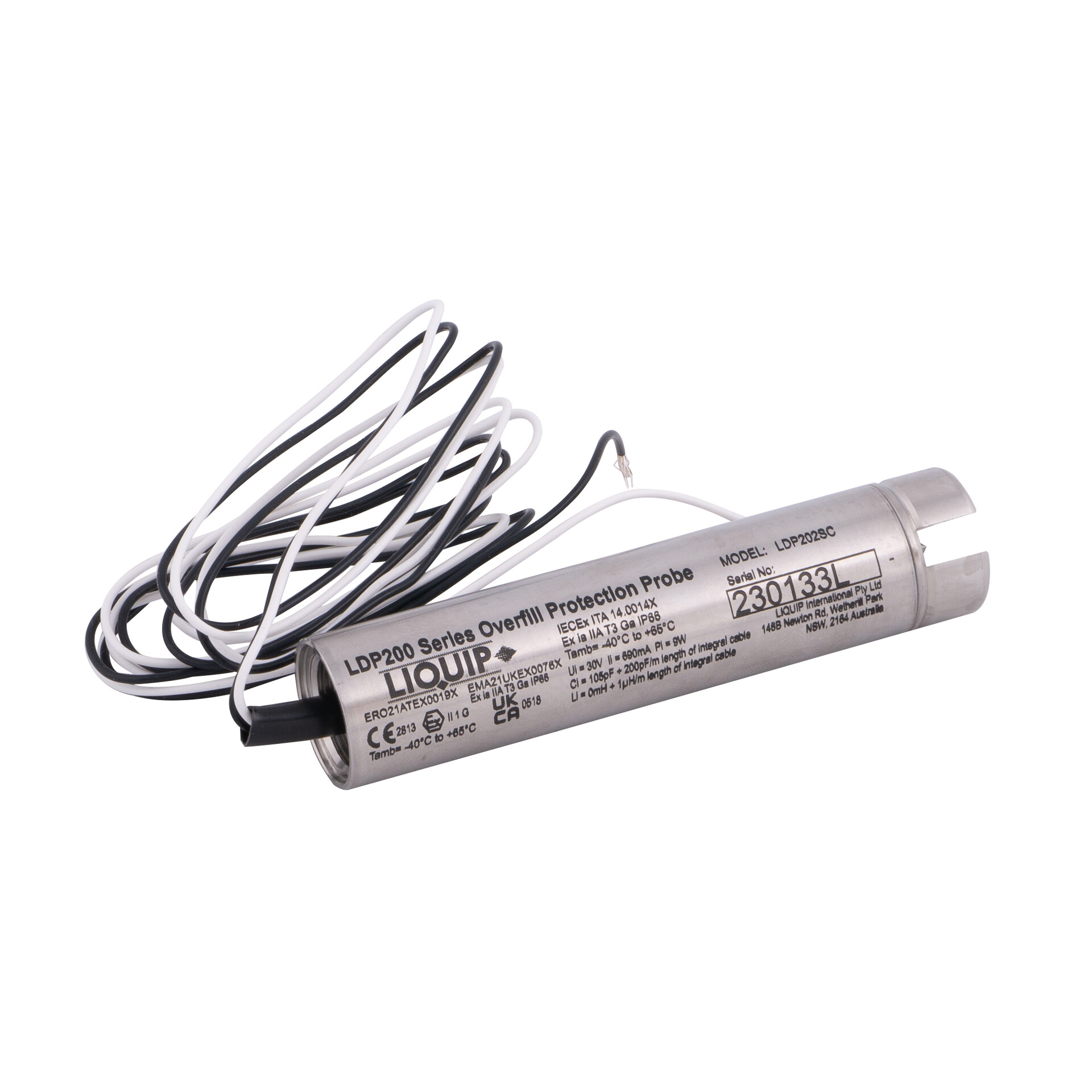

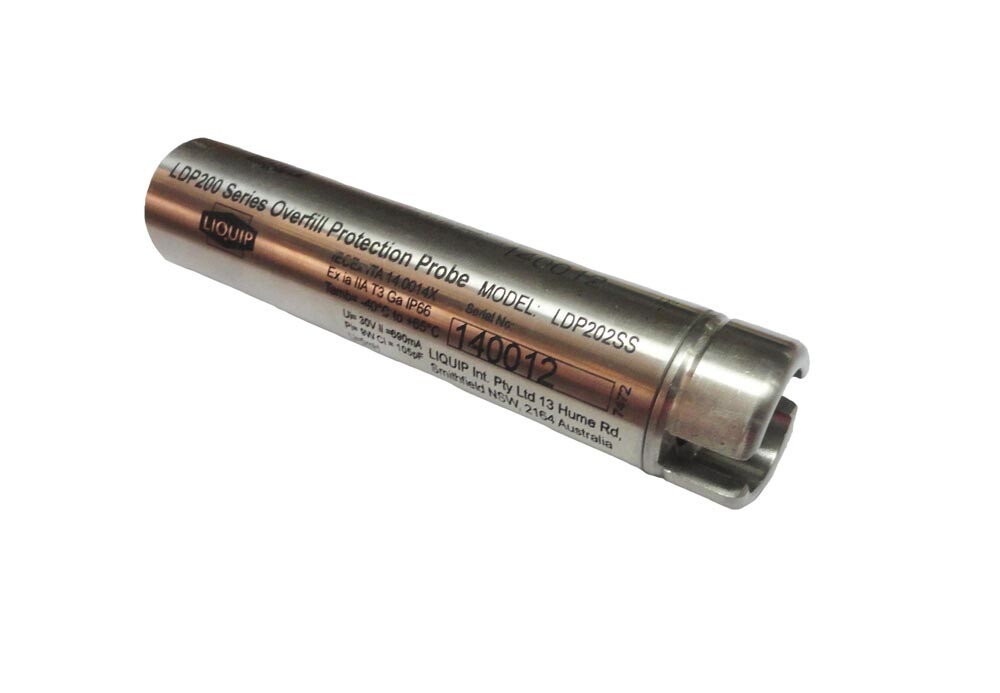

    LDP202SC: 2 Wire Probe, SS-316 Body with FFKM Seals.

    LDP202SCZ: LDP202SC + 80mm S/S extension + FFKM O-ring.

    LDP205SC :5 Wire Probe, SS-316 Body with FFKM Seals.

    LDP205SCZ: LDP205SC + 80mm S/S extension + FFKM O-ring.

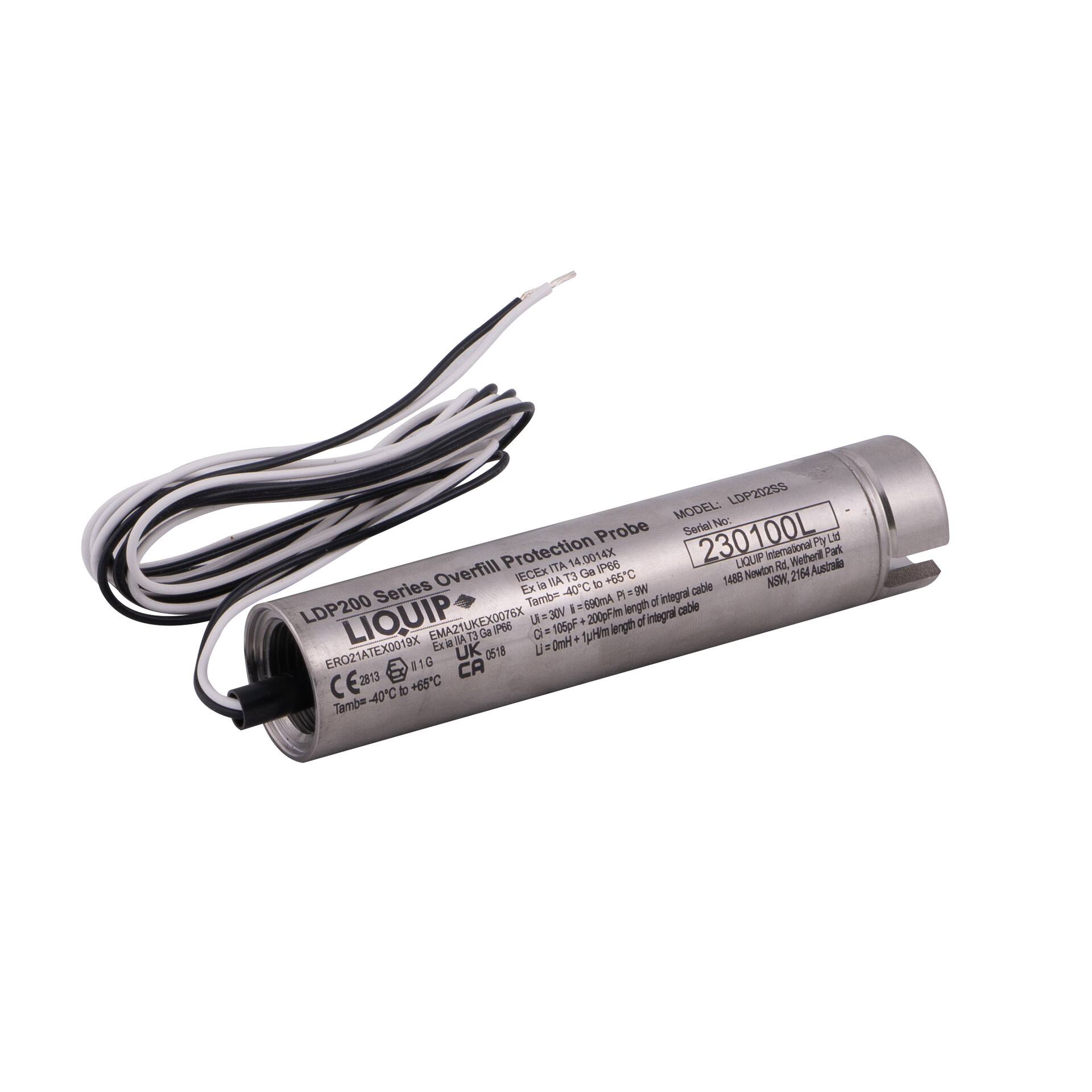

    LDP202SS: 2 Wire Probe, SS-316 Body with Viton Seals.

    LDP202SSZ: LDP202SS + 80mm S/S extension + Viton O-ring.

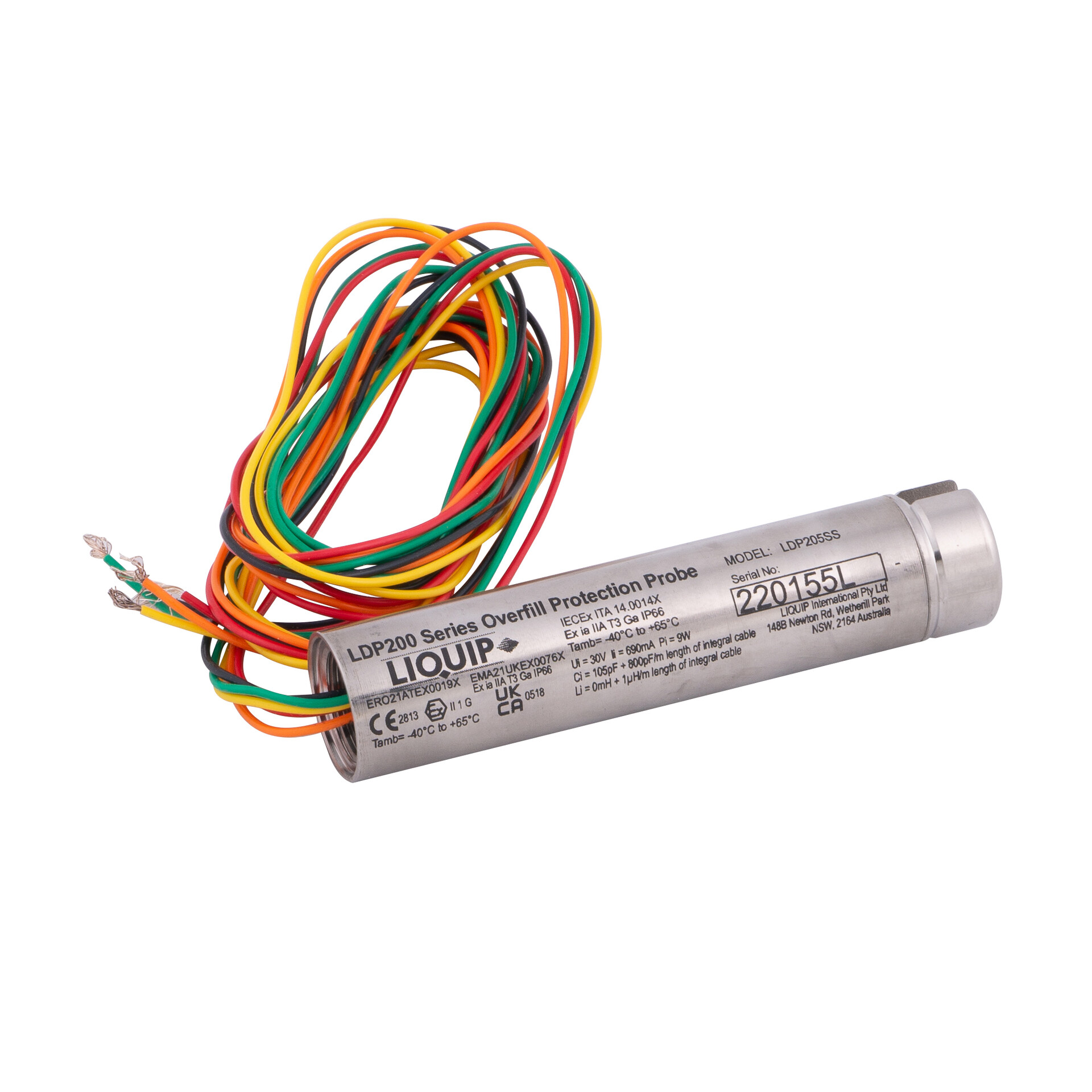

    LDP205SS: 5 Wire Probe, SS-316 Body with Viton Seals

    LDP202SSZ: LDP205SS + 80mm S/S extension + Viton O-ring.

    MULTI COMPARTMENT PROBE KITS

    LDPFILL-1SCZ: 2 Wire Probe, SS-316 Body with Kalrez Seals (1 Compartment kit c/w standard extension).

    LDPFILL-2SCZ: 2 Wire Probe, SS-316 Body with Kalrez Seals (2 Compartment kit c/w standard extension).

    LDPFILL-3SCZ: 2 Wire Probe, SS-316 Body with Kalrez Seals (3 Compartment kit c/w standard extension).

    LDPFILL-4SCZ: 2 Wire Probe, SS-316 Body with Kalrez Seals (4 Compartment kit c/w standard extension).

    LDPFILL-5SCZ: 2 Wire Probe, SS-316 Body with Kalrez Seals (5 Compartment kit c/w standard extension).

    LDPFILL-6SCZ: 2 Wire Probe, SS-316 Body with Kalrez Seals (6 Compartment kit c/w standard extension).

    Associated Equipment

    7612K: O-ring FFKM probe extension.

    LDP102-4SS: S/S probe extension (80mm).

    LDP105-2SS: S/S probe extension (222mm).
