3" Flanged Butterfly Valves



Liquip's range of 3" butterfly valves provide and control full flow through pipelines fitted with 75mm (3") TTMA flanges.

With a lightweight and durable design Liquip's butterfly valves are the butterfly valve of choice.

Features & Benefits
  • 4 stage opening/closing valve.
  • 75mm (3") product flow.
  • Industry Standard 3" TTMA Flange Mounting.
  • Bonded viton seal for increased durability.
  • Lightweight aluminium body.
  • Can be fitted with an Air Actuator or locking tab as required.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Information

    Working pressure
    1,500 kPa (210 PSI) in open position.
    700 kPa (101 PSI) in closed position.

    Operating temperature
    –10°C to 100°C.

    Mounting
    Mounts directly to Liquip 75mm TTMA standard flange with chamfered entry to ensure disc clearance in open position.

    Adjustment/Serivce
    Periodically (approx every 6 months), inspect butterfly seat.

    Materials
    Body - Cast aluminium.
    Butterfly disc - Cast aluminium.
    Handle - Cast aluminium with zinc plated steel locking lever.
    Spindle - Stainless Steel.
    Seal - Bonded Viton A.

    Weight
    1.6kg - LBV300 variants.
    1.16kg - LBV3-LA variants.

    Ordering Information

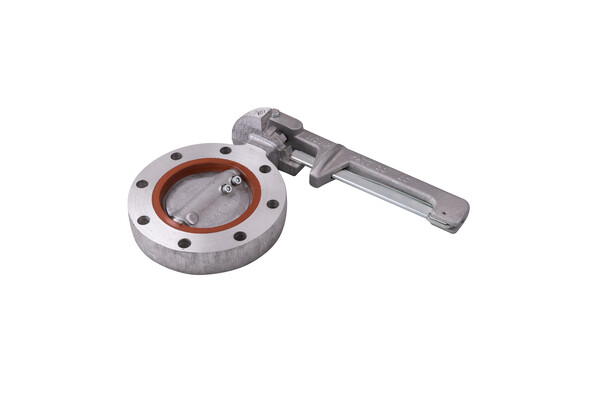

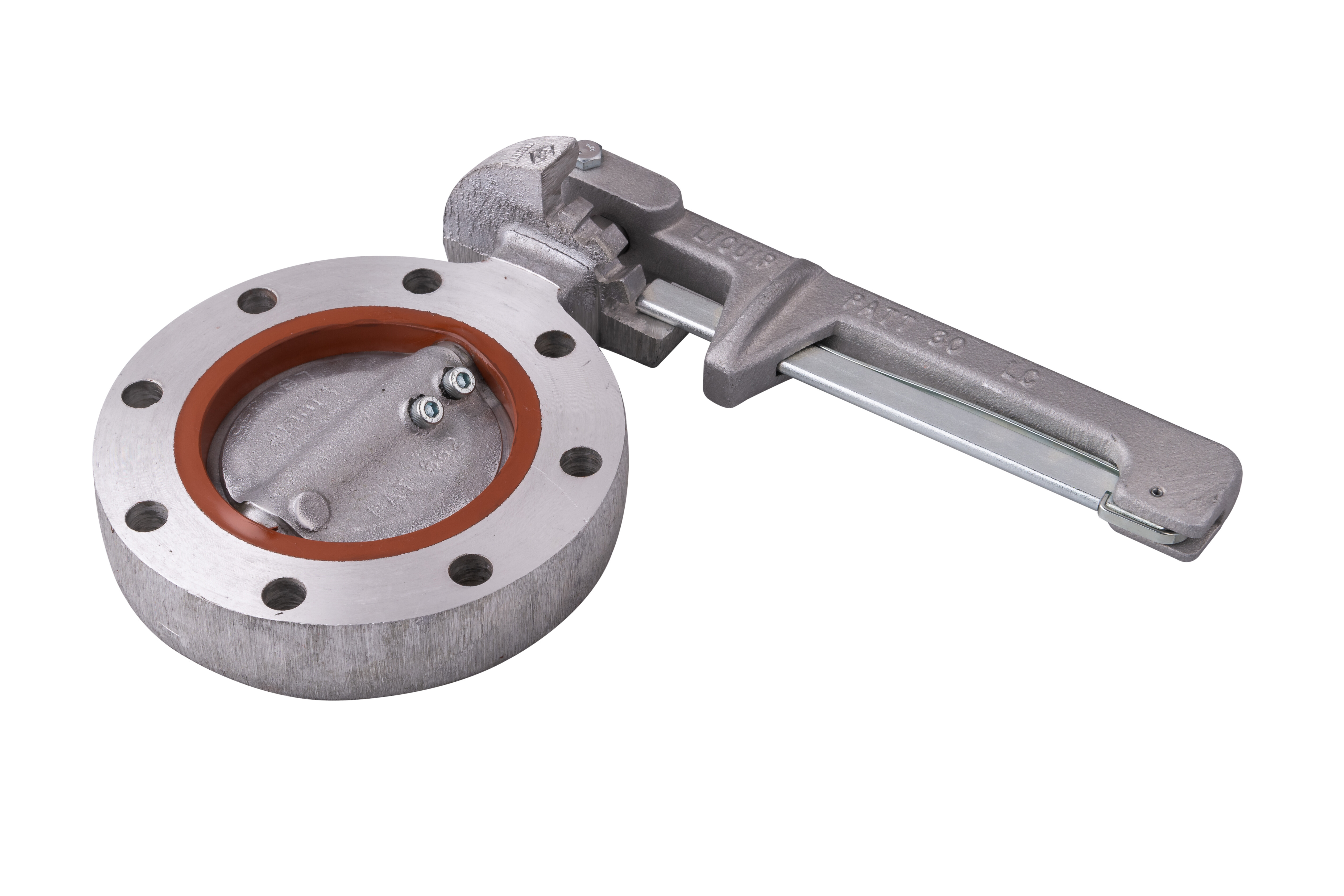

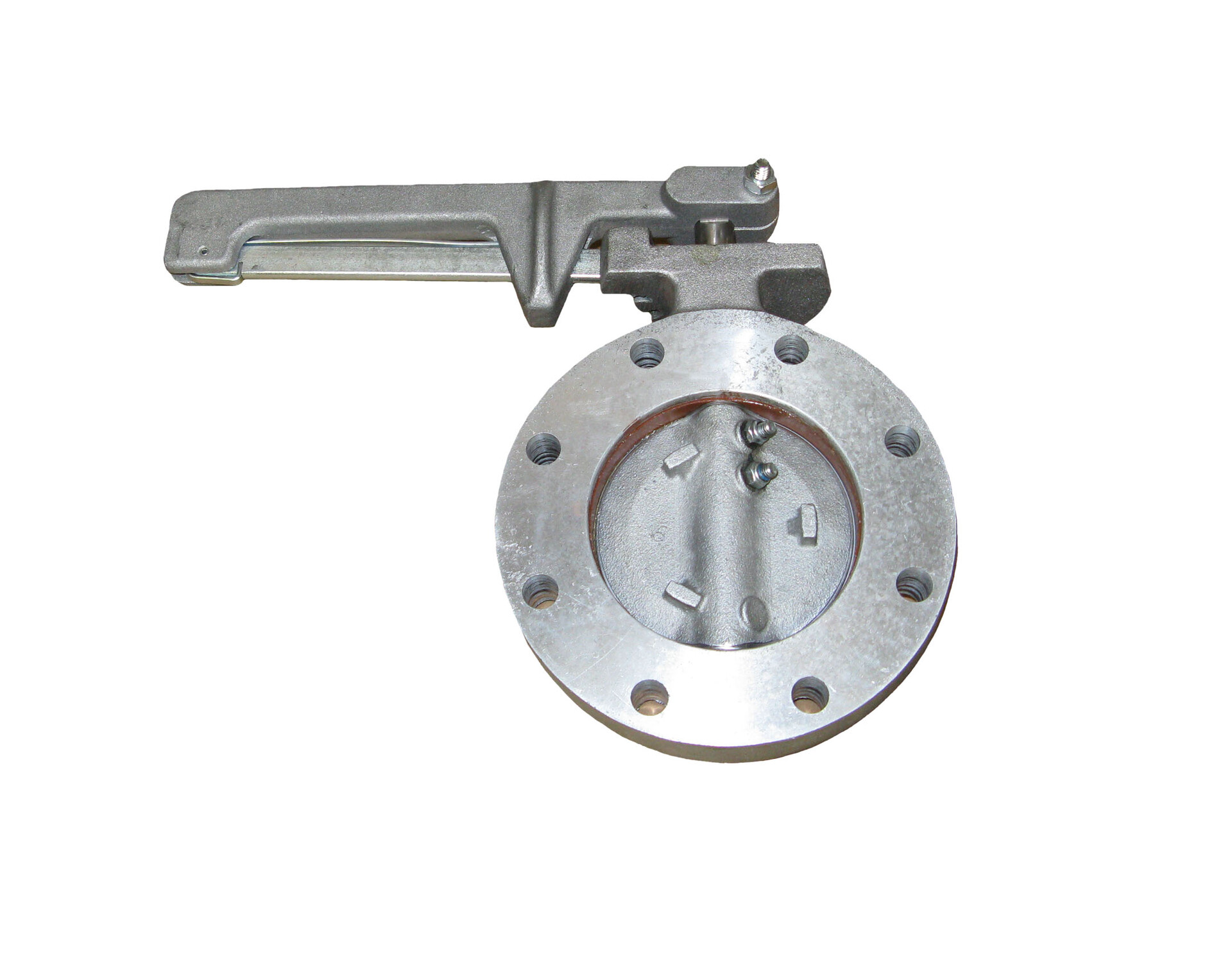

    LBV300: 3” Butterfly valve c/w bonded Viton seal.

    LBV300Z: LBV300 c/w 2 x 3” TTMA NBR gaskets.

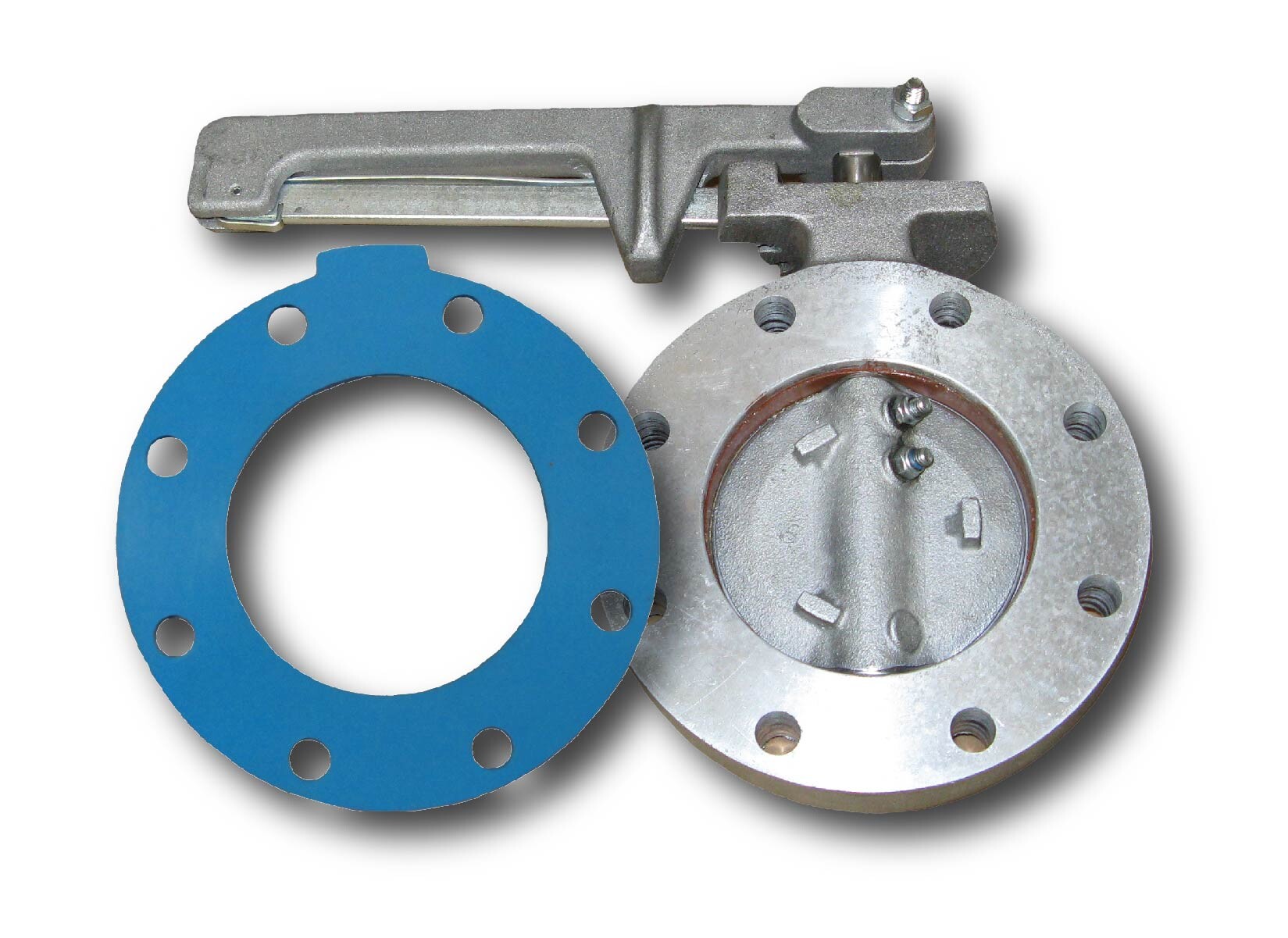

    LBV300VZ: LBV300 c/w 2 x 3” TTMA Viton gaskets.

    LBV350VG: 3" Butterfly valve c/w bonded Viton GFLT seal.

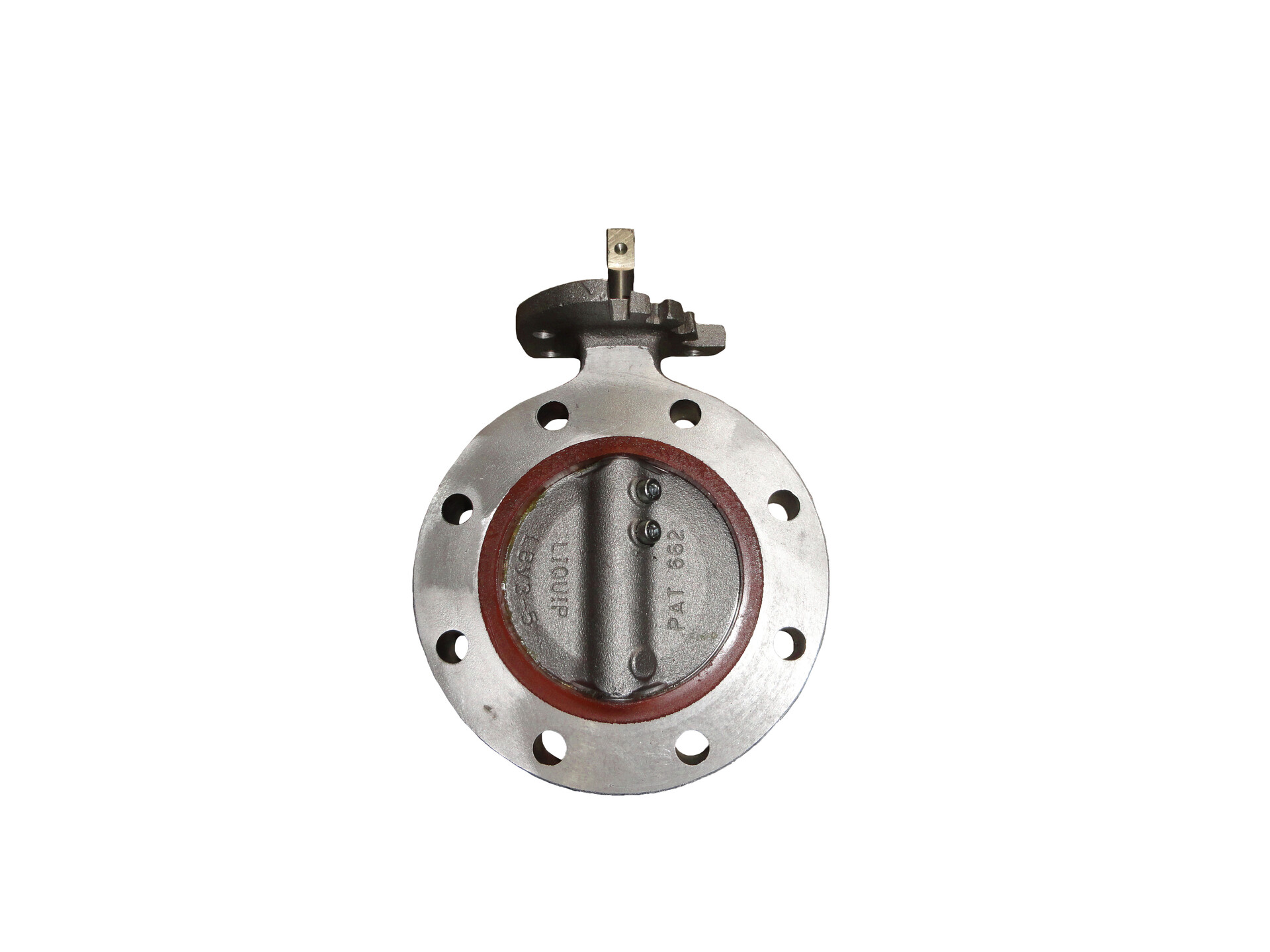

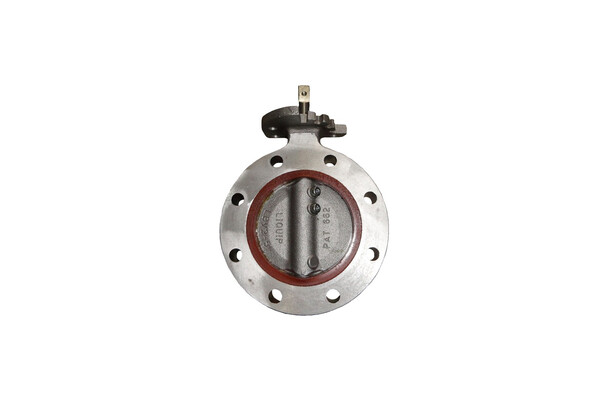

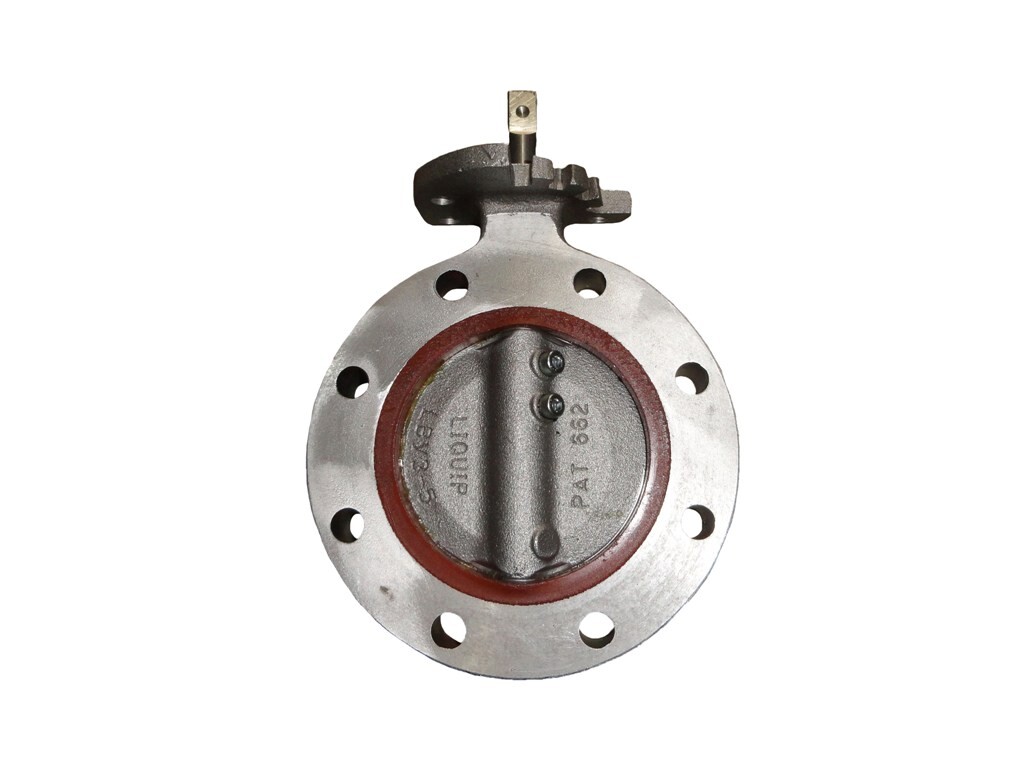

    LBV3-LA: 3” machined butterfly valve C/W Viton seal and no handle to suit actuators.

    LBV350VG-LA: 3” machined butterfly valve c/w GFLT seal and no handle to suit actuators.

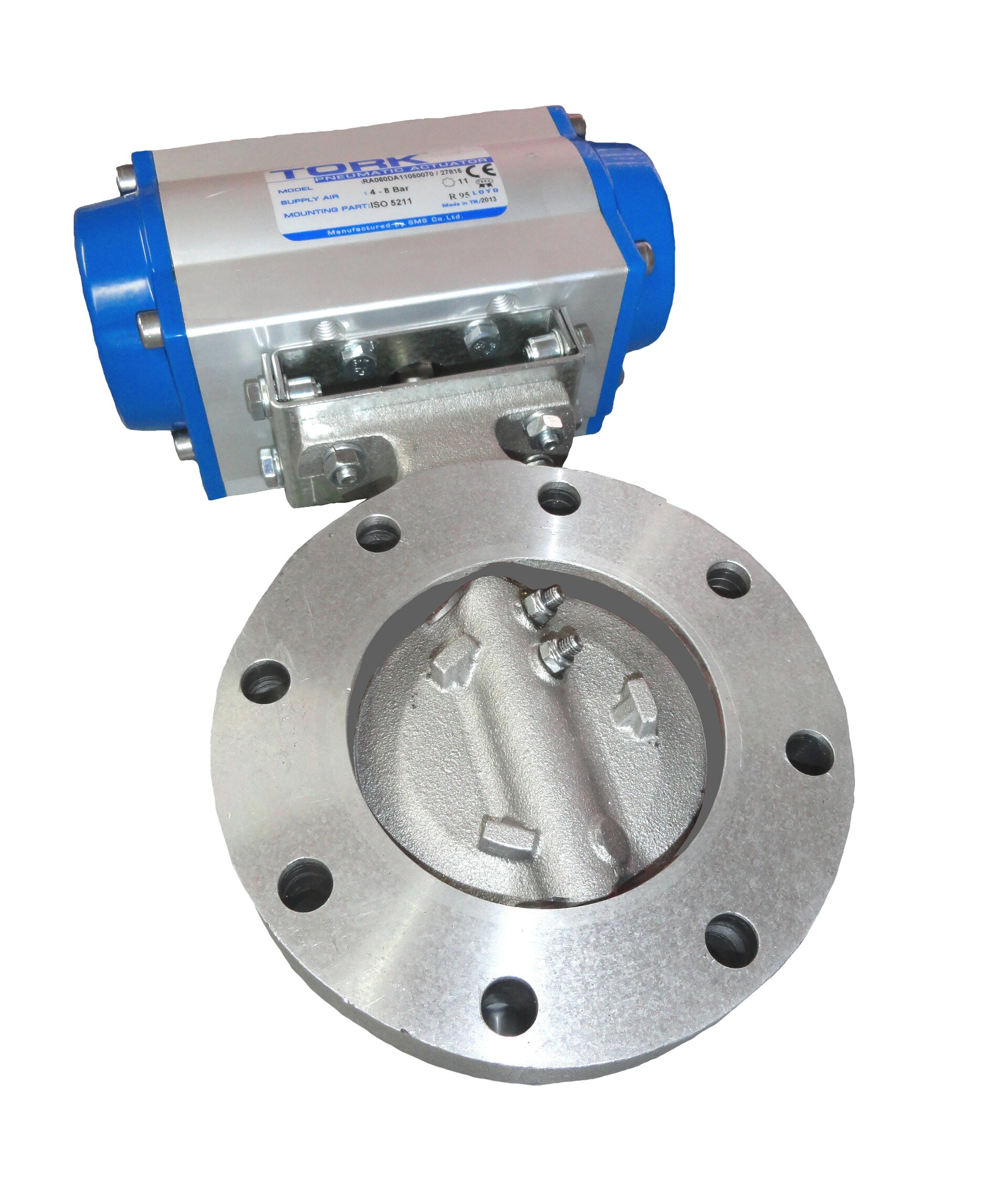

    LBV3-AAZ: 3" LBV3-LA & Air Actuator Kit.

    LBV3-AASRZ*: 3” LBV3-LA & Spring Return Actuator Kit.

    LBV350-AASRLTZ: 3" LBV350VG-LA &  LIQK105K55LT Low Temperature Spring Return Actuator Kit.



    * not suitable for use with DM manifolds.

    Associated Equipment

    BF3: 75mm TTMA aluminium flange (also available in mild & stainless steels).

    0656: 75mm TTMA NBR cork gasket.

    4287: 75mm TTMA klingerite gasket.

    0656V: 75mm TTMA viton gasket.

    LBV4-7: Locking tab.

    LBV-AA: Air Actuator.

    LBV-AASR: Spring Return Air Actuator.

    LIQK105K55LT: Low Temperature Spring Return Air Actuator.
