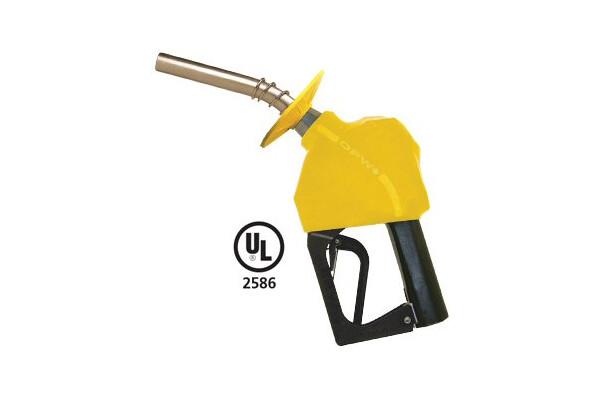

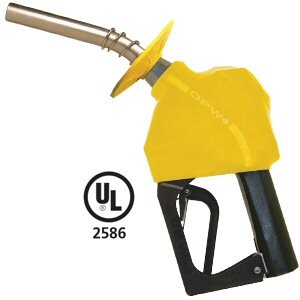

11A® and 11B® Automatic Nozzles



The OPW 11® Series automatic nozzles are OPW’s premium conventional nozzles for safe retail and commercial petroleum filling. The OPW 11® Series is the most trusted conventional nozzle in the world for full service use. The OPW 11B® Series is designed for use in retail and commercial filling applications including prepay, self and full-service, credit/debit card readers or card-lock systems to help prevent gasoline spills. The OPW 11B® will not open until the pumping system is pressurized, and closes automatically when the pressure is removed.

Recommended products for replacement

    Technical Information

    Warning

    Do not use OPW 11A® nozzles with a hold-open device on pre-pay self-service installations. Use the OPW 11B® or the 11A® without a hold-open device. Failure to comply is a violation of NFPA Code 30A, and may create a hazardous condition. Use of foreign objects to hold open automatic nozzles could result in shut-off failure and personal injury.

    Ordering Information

    E-10: Automatic Nozzles with Hold-Open Devices compatible up to E10 (10% Ethanol)

    Handwarmer Colour 11BP Unleaded 2 Piece Handwarmer 11BP Unleaded 1 Piece Handwarmer 11BP AdMaster™ 2 Piece Handwarmer 11BP 2 Piece Handwarmer Extreme Cold
     Green 11BP-0100 11BP-0100-1P 11BP-0100-AD 11BP-0100-XC
     Silver 11BP-0200 11BP-0200-1P
     Red 11BP-0300 11BP-0300-1P 11BP-0300-AD 11BP-0300-XC
     Black 11BP-0400 11BP-0400-1P 11BP-0400-AD 11BP-0400-XC
     Blue 11BP-0500 11BP-0500-1P 11BP-0500-AD
     Gold 11BP-0750 11BP-0750-1P
     Orange 11BP-0800 11BP-0800-1P
     Yellow 11BP-0900 11BP-0900-1P 11BP-0900-AD
     Bare 11BP-0009 11BP-0009
    Contact Customer Service for special colour applications.
    E-10: Automatic Nozzles without Hold-Open Devices compatible up to E10 (10% Ethanol)
    Handwarmer Color 11AP Unleaded* 2 Piece Handwarmer 11AP Unleaded* 1 Piece Handwarmer 11AP* AdMaster™ 2 Piece Handwarmer
     Green 11AP-0100 11AP-0100-1P 11AP-0100-AD
     Silver 11AP-0200 11AP-0200-1P
     Red 11AP-0300 11AP-0300-1P 11AP-0300-AD
     Black 11AP-0400 11AP-0400-1P 11AP-0400-AD
     Blue 11AP-0500 11AP-0500-1P 11AP-0500-AD
     Gold 11AP-0750 11AP-0750-1P
     Orange 11AP-0800 11AP-0800-1P
     Yellow 11AP-0900 11AP-0900-1P 11AP-0900-AD
     Bare 11AP-0009 11AP-0009
    *11A Nozzles are no longer permitted and sold with Hold-Open Clips per UL 2586 requirements. Contact Customer Service for special color applications.
    E-25: Nozzles compatible up to E25 (25% Ethanol)
    Handwarmer Colour 11AP* Unleaded 2 Piece Handwarmer 11BP Unleaded 2 Piece Handwarmer
     Green 11AP-0100-E25 11BP-0100-E25
     Red 11AP-0300-E25 11BP-0300-E25
     Black 11AP-0400-E25 11BP-0400-E25
     Blue 11AP-0500-E25 11BP-0500-E25
     Orange 11AP-0800-E25 11BP-0800-E25
     Yellow 11AP-0900-E25 11BP-0900-E25
    *11A Nozzles are no longer permitted and sold with Hold-Open Clips per UL 2586 requirements. Contact Customer Service for special color applications.
    E-85: Nozzles compatible up to E85 (85% Ethanol)
    Handwarmer Color 11BP Unleaded 2 Piece Handwarmer 11BP AdMaster™ 2 Piece Handwarmer
     Green 11BP-0192-E85
    Red 11BP-0392-E85
     Black 11BP-0492-E85 11BP-0492-E85-AD
     Yellow 11BP-0992-E85 11BP-0992-E85-AD
    B-5: Nozzles compatible up to B5 (5% Biodiesel), Fuel Oil and Kerosene
    Handwarmer Color 11A Leaded* 2 Piece Handwarmer 11A Leaded * 1 Piece Handwarmer 11A Leaded* AdMaster™ 11B Leaded 2 Piece Handwarmer 11B Leaded 1 Piece Handwarmer 11B Leaded AdMaster™
     Green 11A-0100 11A-0100-1P 11A-0100-AD 11B-0100 11B-0100-1P 11B-0100-AD
     Silver 11A-0200 11A-0200-1P 11B-0200-1P
     Red 11A-0300 11A-0300-1P 11B-0300 11B-0300-1P
     Black 11A-0400 11A-0400-1P 11A-0400-AD 11B-0400 11B-0400-1P 11B-0400-AD
     Blue 11A-0500 11A-0500-1P 11A-0500-AD 11B-0500 11B-0500-1P
     Gold 11A-0750 11A-0750-1P 11B-0750 11B-0750-1P
     Orange 11A-0800 11A-0800-1P 11B-0800 11B-0800-1P
     Yellow 11A-0900 11A-0900-1P 11A-0900-AD 11B-0900 11B-0900-1P 11B-0900-AD
     Bare 11A-0009 11B-0009 11B-0009
    *11A Nozzles are no longer permitted and sold with Hold-Open Clips per UL 2586 requirements. Contact Customer Service for special color applications.
    B-20: Nozzles compatible up to B20 (20% Biodiesel)
    Handwarmer Colour 11A Leaded* 2 Piece Handwarmer 11B Leaded 2 Piece Handwarmer
     Green 11A-0100-B20 11B-0100-B20
     Black 11A-0400-B20 11B-0400-B20
     Yellow 11A-0900-B20 11B-0900-B20
    *11A Nozzles are no longer permitted and sold with Hold-Open Clips per UL 2586 requirements. Contact Customer Service for special color applications.

    New Two-Piece Hand Insulator Color Options

    Custom Colors

    With minimum quantities. Contact OPW Customer Service.



    Customize and Colorize

    Imprint your company logo or custom message to any colour hand insulator

    OPW can help you enhance your brand image, drive traffic into your store, and deliver important messages to your customers with its new Enhanced Nozzle Program.

    Now you can imprint company names, logos and/or special promotional messages on to your nozzles!

    Differentiate your store from all others. Choose from a wide array of standard hand insulator colours or create your own custom colour hand insulator.

    We Offer You The Convenience of Choice.





    Accessories

    Name Product # Description Used For:
    3/4" to 1" Bushing 28S-0350 3/4" MNPT to 1" FNPT Bushing Converting an 11 Series Nozzle for use on a 1" Hose
    1" to 3/4" Bushing 28R-2404 1" MNPT x 3/4" FNPT Bushing Converting a 7 Series Nozzle for use on a 3/4" Hose

    28R-2404 Bushing Adaptor

    28S-0350 Bushing Adaptor

    Replacement Parts

    Replacement Parts

    Name Product # Description Used For:
    11A Leaded Spout Kit 5BS-2110 11A , 15/16" O.D. Leaded Spout 11A Spout Replacement
    11AP Unleaded Spout Kit 5BPS-2117 11AP, 13/16" O.D. Unleaded Spout 11AP Spout Replacement
    11B Leaded Spout Kit 5BBS-2135 11B, 15/16" O.D. Leaded Spout 11B Spout Replacement
    11BP Unleaded Spout Kit 5BBPS-2137 11BP, 13/16" O.D. Unleaded Spout 11BP Spout Replacement
    NEWGARD Kits See NEWGARD page Replacement Hand Insulators 11A, 11AP, 11B, 11BP NEWGARD Replacements
    Instruction Sheet H15985M Installation and Instruction Sheet 11A, 11AP, 11B, 11BP Instruction Sheet

    OPW 5BS and 5BBS Leaded, Diesel, Kerosene Spout

    OPW 5BBPS and 5BPS Unleaded Spout
