Show Flow



The most reliable way to tell if there is any flow through small bore tubing is the use of a “show flow”.

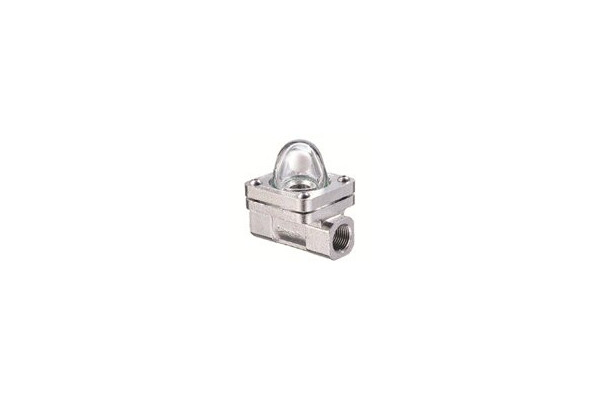

Liquip's “Show-Flow” visual indicator provides a observable status of flow in the fuel system by the yellow paddle-wheel spinning.

Some of these devices are also equipped with a check valve. When installing these devices, the arrow on the casting needs to be adhered to. The show flow is most commonly used together with an air eliminator. It is also sometimes fitted to the thermal relief.

Features & Benefits
  • The SFP style can be mounted both horizontal and vertical, offering bi-directional flow indication with low pressure losses.
  • Range of sizes i.e. ¼" to 1".
  • The SFP  series requires no routine maintenance.
  • Low pressure loss.
  • 230 PSI/400oF capability.
  • Constructed from high quality materials, these in-line indicators are suitable for many applications including water, oil, chemicals, air and gases

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Image Item Description
    Add Item into Enquiry Cart

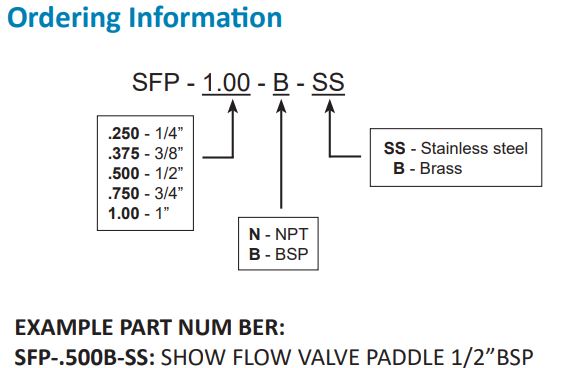

    SFP-.250B-B Show flow valve paddle 1/4", BSP, Brass
    SFP-.250B-SS Show flow valve paddle 1/4", BSP, Stainless Steel
    SFP-.250N-B Show flow valve paddle 1/4", NPT, Brass
    SFP-.250N-SS Show flow valve paddle 1/4", NPT, Stainless Steel
    SFP-.375B-B Show flow valve paddle 3/8", BSP, Brass
    SFP-.375B-SS Show flow valve paddle 3/8", BSP, Stainless Steel
    SFP-.375N-B Show flow valve paddle 3/8", NPT, Brass
    SFP-.375N-SS Show flow valve paddle 3/8", NPT, Stainless Steel
    SFP-.500B-B Show flow valve paddle 1/2", BSP, Brass
    SFP-.500B-SS Show flow valve paddle 1/2", BSP, Stainless Steel
    SFP-.500N-B Show flow valve paddle 1/2", NPT, Brass
    SFP-.500N-SS Show flow valve paddle 1/2", NPT, Stainless Steel
    SFP-.750B-B Show flow valve paddle 3/4", BSP, Brass
    SFP-.750B-SS Show flow valve paddle 3/4", BSP, Stainless Steel
    SFP-.750N-B Show flow valve paddle 3/4", NPT, Brass
    SFP-.750N-SS Show flow valve paddle 3/4", NPT, Stainless Steel
    SFP-1.00B-B Show flow valve paddle 1", BSP, Brass
    SFP-1.00B-SS Show flow valve paddle 1", BSP, Stainless Steel
    SFP-1.00N-B Show flow valve paddle 1", NPT, Brass
    SFP-1.00N-SS Show flow valve paddle 1", NPT, Stainless Steel
