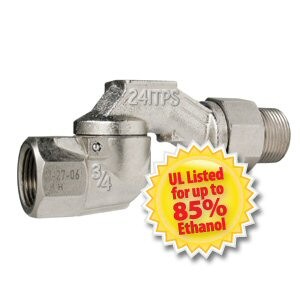

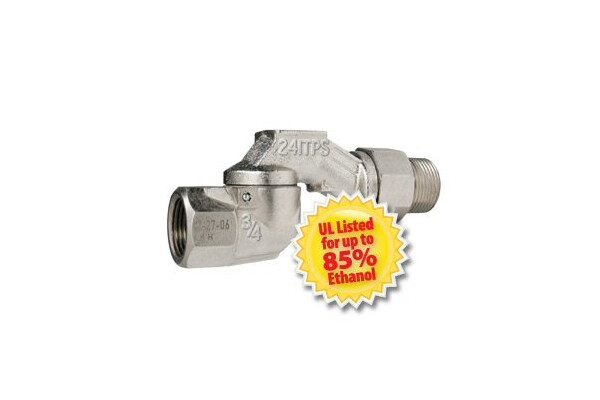

241TPS-0492 Ethanol Swivel



The OPW 241TPS-0492 is designed and rigorously tested for use in today’s alternative fuels. The first swivel of its kind to be UL listed for use in Ethanol blended fuels up to 85%. Swivels are installed in between the nozzle and the hose to provide flexibility in the system to reduce customer strain, position the nozzle properly, and reduce premature hose wear.

Features & Benefits
  • UL Listed for up to 85% ethanol.
  • Allows for easy nozzle positioning in fill pipes – Utilizing two planes of rotation.
  • Reduces premature hose wear – Utilizing two planes of rotation.
  • Added protection vs. thermal and chemical degradation – Dual Seals

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Information

    Design working pressure
    50 PSI (3.45 bar) maximum pressure.

    Materials
    Body: aluminium w/ nickel plating
    Outlet Adaptor: zinc w/ nickel plating
    Inlet Adaptor: zinc w/ nickel plating
    Seals: Buna-N, Viton®
    Bearing: nylon
    Weight: 0.65 lbs., 0.30 kg

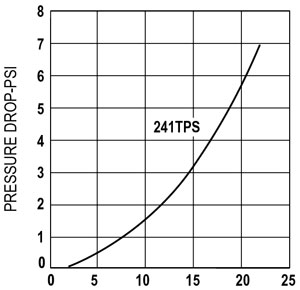

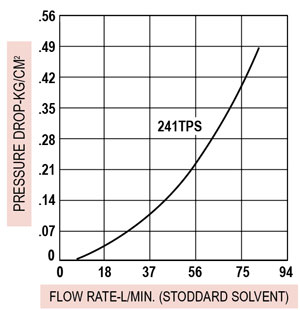

    Performance

    Listings & Certifications



    Ordering Information
    Item

    Inlet/Outlet

    Length A

    Depth B

    241TPS-0492

    3/4" F x 3/4" M (NPT)

    4-7/8"

    2-3/16"

    19 mm x 19 mm

    124 mm

    56 mm

    Dimensions
